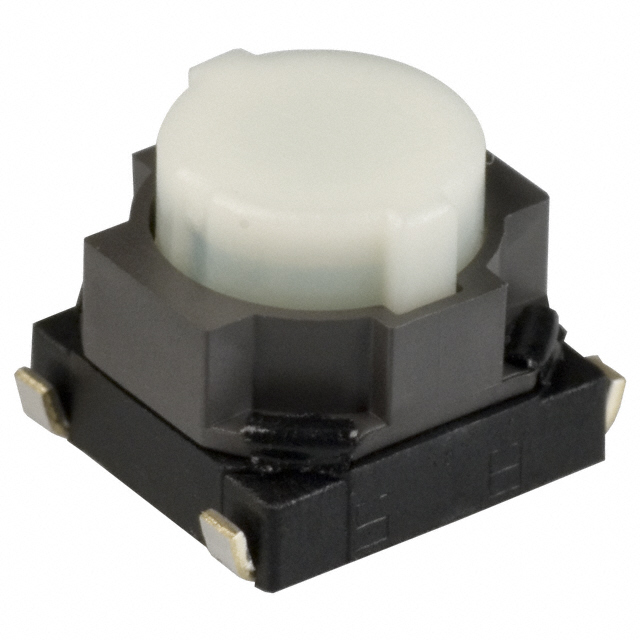

EVQ-P1 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Operating Force | Outline [x] | Outline [y] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Actuator Orientation | Termination Style | Mechanical Life | Actuator Height off PCB, Vertical | Switch Function | Actuator Type | Illumination | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 1 mm | 220 gf | 6.1 mm | 6 mm | Surface Mount | 85 °C | -40 °C | 0.05 A 12 VDC | Top Actuated | J Lead | 100000 Cycles | 5 mm | Off-Mom | Standard | Non-Illuminated | SPST-NO |
