833-13 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 20POS 0.079 GOLD PCB

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Mounting Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Number of Rows [custom]	Insulation Color	Contact Type	Insulation Height	Insulation Height
Mill-Max Manufacturing Corp. 833-13-020-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	20	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-094-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	94	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-088-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	88	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-018-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	18	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-066-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	66	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in

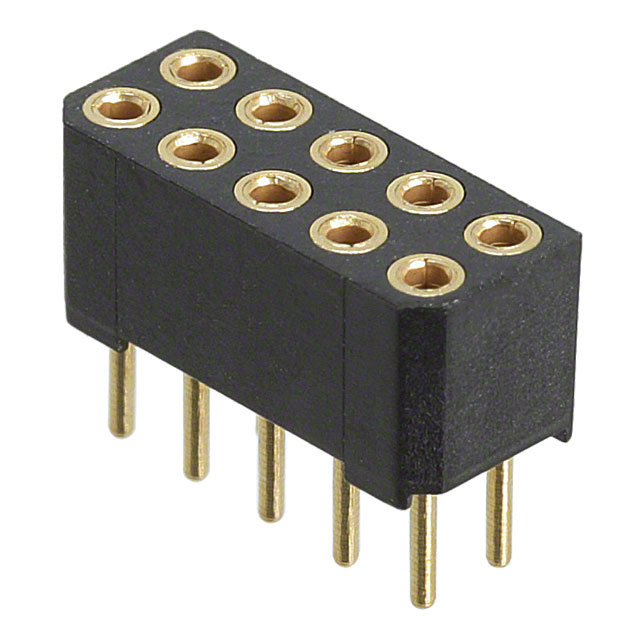

Mill-Max Manufacturing Corp. 833-13-010-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	10	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-072-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	72	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-074-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	74	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-070-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	70	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
Mill-Max Manufacturing Corp. 833-13-038-10-002000	Circular	10 Áin	0.25 çm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	Solder	3 A	38	0.079 "	2 mm	2 mm	0.079 in	Gold	Receptacle	0.76 Ám	30 Áin	Gold	Push-Pull	Through Hole	2.82 mm	0.111 in	UL94 V-0	2	Black	Female Socket	4.55 mm	0.179 in
