206957 Series

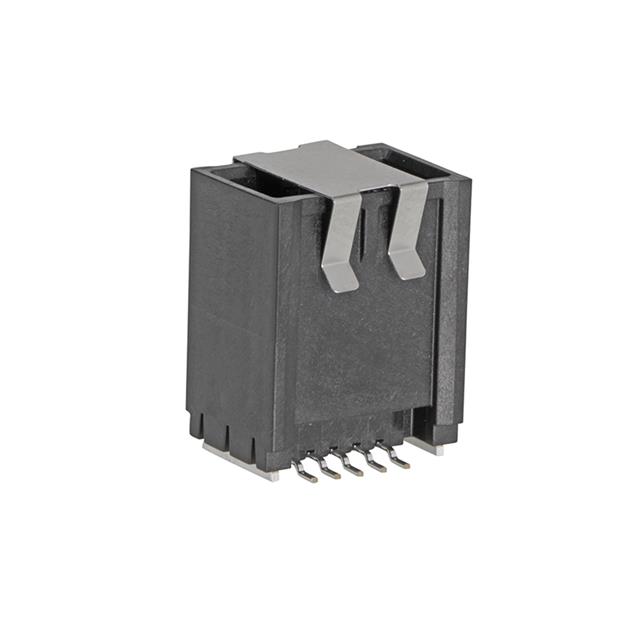

ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black
Manufacturer: Molex
Catalog
ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black
Beta
⌘K
ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black
ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black
ConnTAK50 Header, Dual Row, Vertical, Surface Mount, 10 Circuits / 8 Circuits Usable, Key A, Black
| Part | Insulation Height | Insulation Height | Termination | Connector Type | Insulation Color | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Shrouding | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Material | Voltage Rating | Fastening Type | Contact Type | Number of Positions Loaded | Contact Shape | Material Flammability Rating | Number of Positions | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness - Mating | Features | Contact Length - Mating | Contact Length - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 19 mm | 0.748 in | Solder | Header | Natural | Surface Mount | 1.5 mm | 0.059 in | Board to Cable/Wire | Shrouded - 4 Wall | 0.071 in | 1.8 mm | 1 µm | 39.4 µin | Brass | Syndiotactic Polystyrene (SPS) | 14 VAC/DC | Push-Pull | Male Pin | All | Square | UL94 V-0 | 10 | 2 | 1 çm | 39.4 çin | Tin | -40 °C | 105 ░C | 3 A | |||||
 Molex | |||||||||||||||||||||||||||||||||||
Molex | 19 mm | 0.748 in | Solder | Header | Violet | Surface Mount | 1.5 mm | 0.059 in | Board to Cable/Wire | Shrouded - 4 Wall | 0.071 in | 1.8 mm | 1 µm | 39.4 µin | Brass | Syndiotactic Polystyrene (SPS) | 14 VAC/DC | Push-Pull | Male Pin | All | Square | UL94 V-0 | 10 | 2 | 1 çm | 39.4 çin | Tin | -40 °C | 105 ░C | 3 A | |||||
 Molex | |||||||||||||||||||||||||||||||||||
Molex | 19 mm | 0.748 in | Solder | Header | Violet | Surface Mount | 1.5 mm | 0.059 in | Board to Cable/Wire | Shrouded - 4 Wall | 0.071 in | 1.8 mm | 118.1 µin | Brass | Syndiotactic Polystyrene (SPS) | 14 VAC/DC | Push-Pull | Male Pin | All | Square | UL94 V-0 | 8 | 2 | 0.3 µm | 12 µin | Tin | -40 °C | 105 ░C | 3 A | 3 µm | Pick and Place | ||||
Molex | 19 mm | 0.748 in | Solder | Header | Black | Surface Mount | 1.5 mm | 0.059 in | Board to Cable/Wire | Shrouded - 4 Wall | 0.071 in | 1.8 mm | 1 µm | 39.4 µin | Brass | Syndiotactic Polystyrene (SPS) | 100 VAC | Push-Pull | Male Pin | All | Square | 10 | 2 | 1 çm | 39.4 çin | Tin | -40 °C | 105 ░C | 6.5 mm | 0.256 in | Varies by Wire Gauge | ||||
Molex | 19 mm | 0.748 in | Solder | Header | Natural | Surface Mount | 1.5 mm | 0.059 in | Board to Cable/Wire | Shrouded - 4 Wall | 0.071 in | 1.8 mm | 118.1 µin | Brass | Syndiotactic Polystyrene (SPS) | 14 VAC/DC | Push-Pull | Male Pin | All | Square | UL94 V-0 | 8 | 2 | 0.3 µm | 12 µin | Tin | -40 °C | 105 ░C | 3 A | 3 µm | Pick and Place |
