FI-RE41S Series

Catalog

CONN RCPT 41POS 0.02 GOLD SMD

Part	Applications	Contact Material	Insulation Material	Termination	Connector Type	Number of Rows	Mounting Type	Current Rating (Amps)	Number of Positions	Features	Mated Stacking Heights	Material Flammability Rating	Insulation Height	Insulation Height	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Height

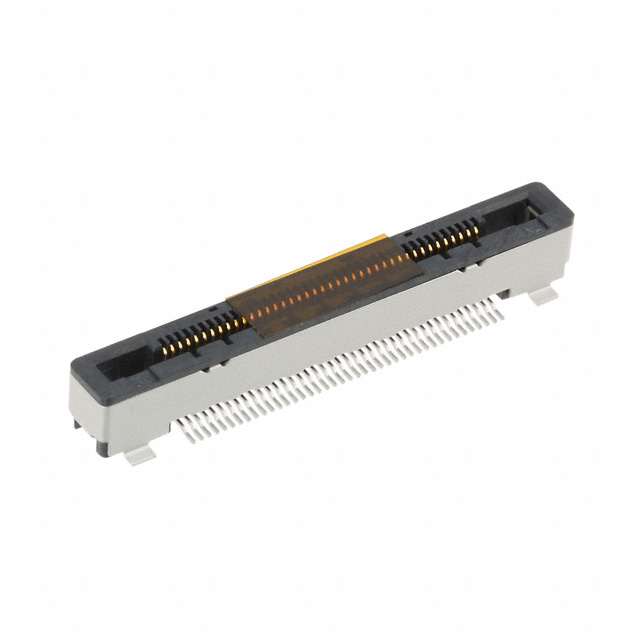

JAE Electronics FI-RE41S-VF	General Purpose Medical	Copper Alloy	Plastic	Solder	Receptacle	1	Surface Mount	0.8 A	41	Shielded Solder Retention	10.1 mm 16.1 mm	UL94 V-0	4.65 mm	0.183 in	Board to Cable/Wire	80 °C	-40 C	Tin	Female Blade Socket	Gold	All	Latch Holder	0.5 mm	0.02 in
JAE Electronics FI-RE41S-VF-R1300	General Purpose Medical	Copper Alloy	Plastic	Solder	Receptacle	1	Surface Mount	0.8 A	41	Shielded Solder Retention	10.1 mm 16.1 mm	UL94 V-0	4.65 mm	0.183 in	Board to Cable/Wire	80 °C	-40 C	Tin	Female Blade Socket	Gold	All	Latch Holder	0.5 mm	0.02 in
JAE Electronics FI-RE41S-HF-R1500	General Purpose Medical	Copper Alloy	Plastic	Solder	Receptacle	1	Right Angle Surface Mount	0.8 A	41	Shielded Solder Retention		UL94 V-0	0.148 in		Board to Cable/Wire	80 °C	-40 C	Tin	Female Blade Socket	Gold	All	Latch Holder	0.5 mm	0.02 in	3.75 mm
