832-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER VERT 68POS 2MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Material	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Voltage Rating	Contact Shape	Insulation Height	Insulation Height

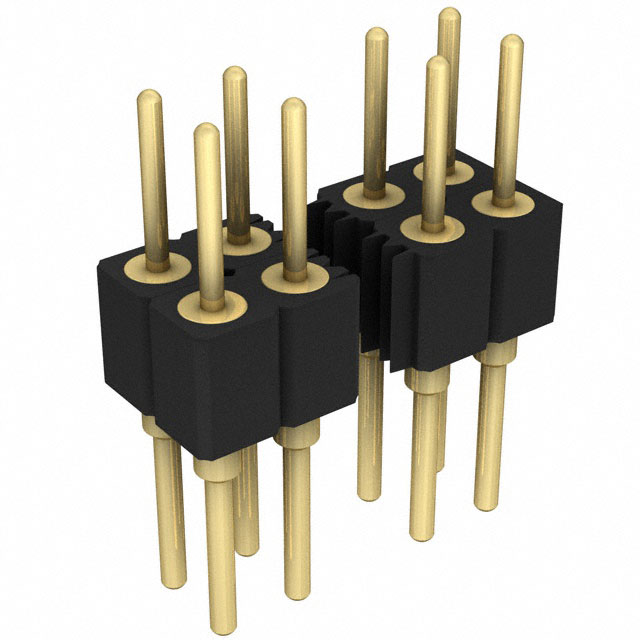

Preci-Dip 832-10-068-10-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All	10 mm	0.394 in	Brass	Male Pin	2 mm	0.079 in	68 positions	Through Hole	0.141 in	3.6 mm	Gold	0.114 in	2.9 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular

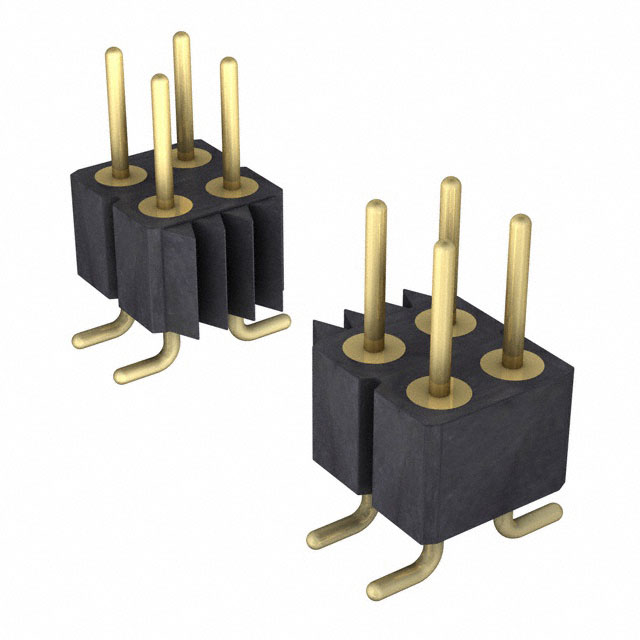

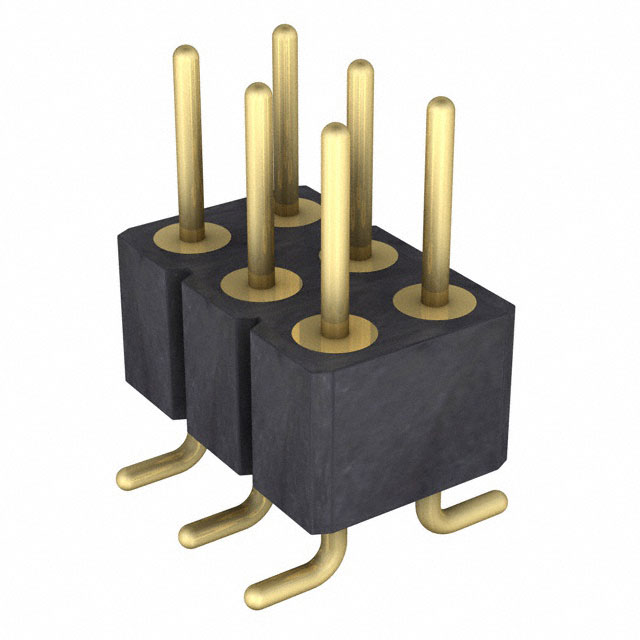

Preci-Dip 832-10-006-30-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All			Brass	Male Pin	2 mm	0.079 in	6	Surface Mount	0.141 in	3.6 mm	Gold			Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular
Preci-Dip 832-10-046-10-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All	10 mm	0.394 in	Brass	Male Pin	2 mm	0.079 in	46	Through Hole	0.141 in	3.6 mm	Gold	0.114 in	2.9 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular
Preci-Dip 832-10-094-30-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All			Brass	Male Pin	2 mm	0.079 in	94	Surface Mount	0.141 in	3.6 mm	Gold			Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular
Preci-Dip 832-10-032-10-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All	10 mm	0.394 in	Brass	Male Pin	2 mm	0.079 in		Through Hole	0.141 in	3.6 mm	Gold	0.114 in	2.9 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular

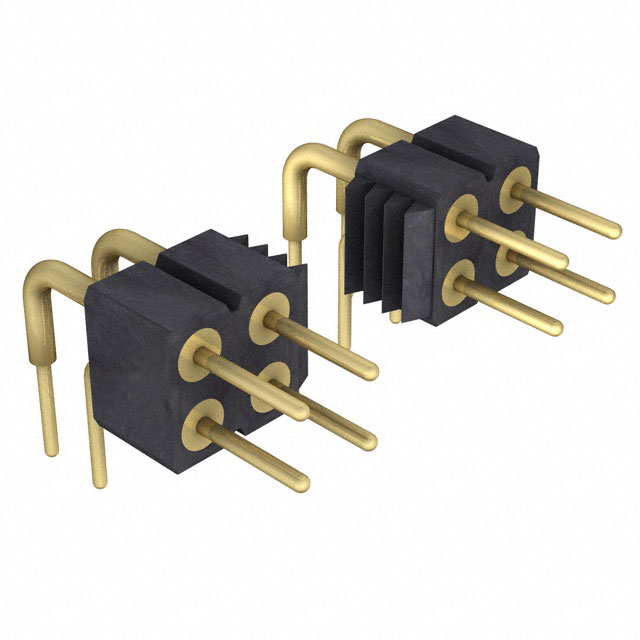

Preci-Dip 832-10-056-20-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All			Brass	Male Pin	2 mm	0.079 in	56	Right Angle Through Hole	0.141 in	3.6 mm	Gold	0.126 "	3.2 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular	0.165 in	4.2 mm
Preci-Dip 832-10-074-10-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All	10 mm	0.394 in	Brass	Male Pin	2 mm	0.079 in	74	Through Hole	0.141 in	3.6 mm	Gold	0.114 in	2.9 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular
Preci-Dip 832-10-086-20-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All			Brass	Male Pin	2 mm	0.079 in	86	Right Angle Through Hole	0.141 in	3.6 mm	Gold	0.126 "	3.2 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular	0.165 in	4.2 mm
Preci-Dip 832-10-016-10-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All	10 mm	0.394 in	Brass	Male Pin	2 mm	0.079 in	16	Through Hole	0.141 in	3.6 mm	Gold	0.114 in	2.9 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular
Preci-Dip 832-10-028-20-001101	10 Áin	0.25 çm	2	UL94 V-0	Solder	0.079 "	2 mm	Gold	Black	0.25 µm	10 µin	All			Brass	Male Pin	2 mm	0.079 in	28	Right Angle Through Hole	0.141 in	3.6 mm	Gold	0.126 "	3.2 mm	Unshrouded	3 A	Header	-55 C	125 °C	Push-Pull	150 VDC	Circular	0.165 in	4.2 mm
