S1TAAT0-H Series
Manufacturer: ODU
Beta
⌘K

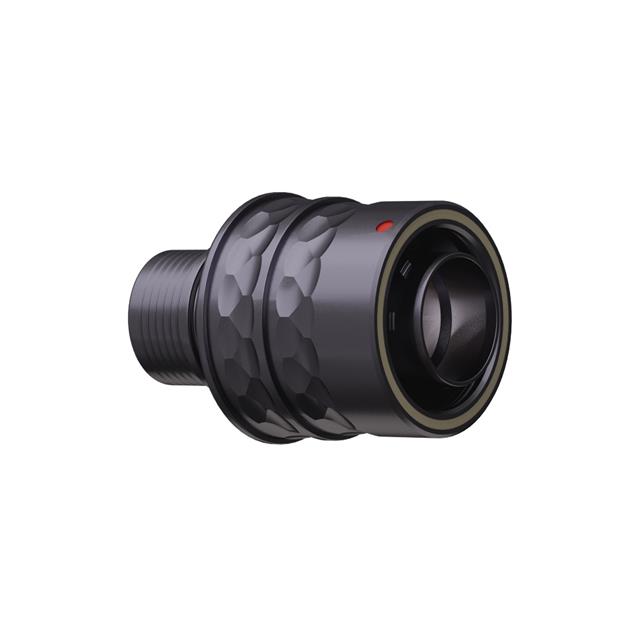

ODU AMC SERIES T PUSH-PULL PLUG,
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Color | Shielding | Orientation | Material Flammability Rating | Cable Opening | Cable Opening | Number of Positions | Shell Material | Features | Mounting Type | Voltage Rating | Contact Finish - Mating | Shell Size - Insert [custom] | Shell Finish | Insert Material | Connector Type | Ingress Protection | Contact Material | Termination | Primary Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 µin | 1.27 µm | 5 A 7.5 A | -65 ░C | 175 °C | Silver | Shielded | A | UL94 V-0 | 14.6 mm | 0.575 in | 18 | Aluminum | Coupling Nut | Free Hanging (In-Line) | 50 V | Gold | 12 | Tin Nickel | Polyetheretherketone (PEEK) | Plug Male Pins | IP68 IP69K | Copper Alloy | Crimp | Metal | Push-Pull | |
50 µin | 1.27 µm | 13 A | -65 ░C | 175 °C | Silver | Shielded | A | UL94 V-0 | 14.6 mm | 0.575 in | 5 | Aluminum | Coupling Nut | Free Hanging (In-Line) | 50 V | Gold | 12 | Tin Nickel | Polyetheretherketone (PEEK) | Plug Male Pins | IP68 IP69K | Copper Alloy | Crimp | Metal | Push-Pull |
