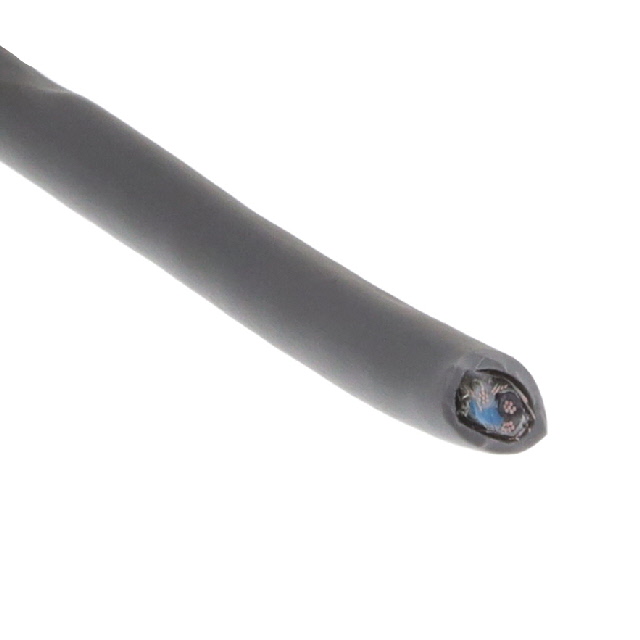

5271C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 1 PAIR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Features | Conductor Material | Length [x] | Length [x] | Jacket Color | Jacket (Insulation) Material | Usage | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 2 | 4.67 mm | 0.184 in | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Braid Foil | 24 AWG | 0.813 mm | 0.032 in | Multi-Conductor | 7 | 32 AWG | ISO 10993 | Biological Compatibility Rip Cord | Copper Tinned | 100 ft | 30.5 m | Slate | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 2 | 4.67 mm | 0.184 in | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Braid Foil | 24 AWG | 0.813 mm | 0.032 in | Multi-Conductor | 7 | 32 AWG | ISO 10993 | Biological Compatibility Rip Cord | Copper Tinned | Black | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 2 | 4.67 mm | 0.184 in | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Braid Foil | 24 AWG | 0.813 mm | 0.032 in | Multi-Conductor | 7 | 32 AWG | ISO 10993 | Biological Compatibility Rip Cord | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | Communication Control | 300 VDC | 304.8 m | 1000 ft |
