LB25CGW Series

Catalog

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-(ON), ROUND, TRANSPARENT

Part	Electrical Life	Mechanical Life	Switch Function	Color - Actuator/Cap	Mounting Type	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Termination Style	Voltage Rating - AC
NKK Switches LB25CGW01-5F-JF	100000 Cycles	1000000 Cycles	On-Mom	Clear	Panel Mount Snap-In	DPDT	Button Round	22 mm	2.1 VDC	30 V	No Marking	3 A	Illuminated Standard	50 °C	-25 °C	Green LED	Solder Quick Connect - 0.110" (2.8mm)	125 V

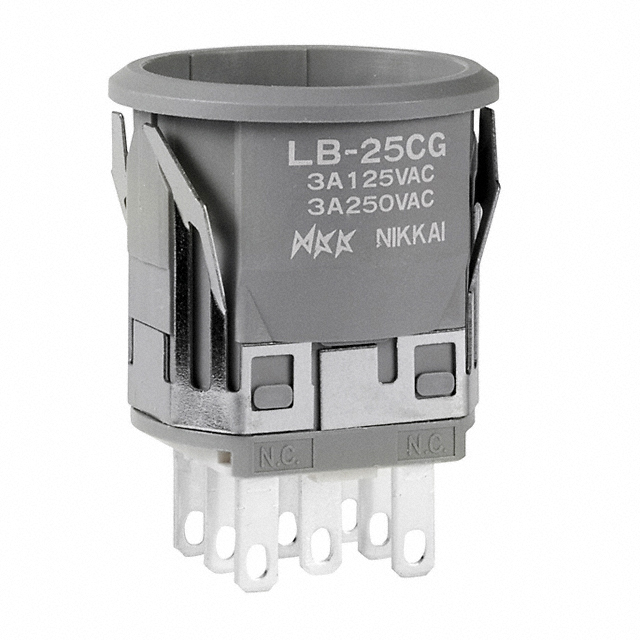

NKK Switches LB25CGW01/UC	100000 Cycles	1000000 Cycles	On-Mom		Panel Mount Snap-In	DPDT	Plunger for Cap	22 mm		30 V	No Marking	3 A	Standard	70 °C	-25 °C		Solder Quick Connect - 0.110" (2.8mm)	125 V
NKK Switches LB25CGW01-01-JC	100000 Cycles	1000000 Cycles	On-Mom	Clear	Panel Mount Snap-In	DPDT	Button Round	22 mm	110 VAC	30 V	No Marking	3 A	Illuminated Standard	50 °C	-25 °C	Neon Red	Solder Quick Connect - 0.110" (2.8mm)	125 V
NKK Switches LB25CGW01-5F12-JF	100000 Cycles	1000000 Cycles	On-Mom	Clear	Panel Mount Snap-In	DPDT	Button Round	22 mm	12 VDC	30 V	No Marking	3 A	Illuminated Standard	50 °C	-25 °C	Green LED	Solder Quick Connect - 0.110" (2.8mm)	125 V
NKK Switches LB25CGW01-B	100000 Cycles	1000000 Cycles	On-Mom	White	Panel Mount Snap-In	DPDT	Button Round	22 mm		30 V	No Marking	3 A	Standard	70 °C	-25 °C		Solder Quick Connect - 0.110" (2.8mm)	125 V

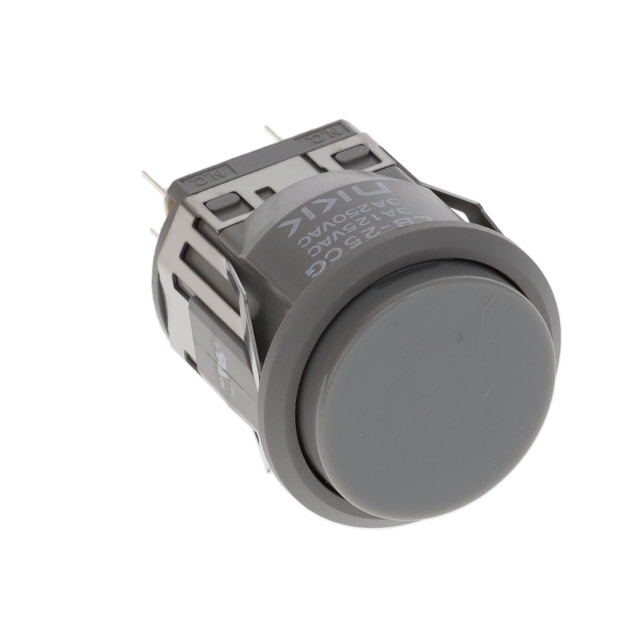

NKK Switches LB25CGW01-H	100000 Cycles	1000000 Cycles	On-Mom		Panel Mount Snap-In	DPDT	Button Round	22 mm		30 V	No Marking	3 A	Standard	70 °C	-25 °C		Solder Quick Connect - 0.110" (2.8mm)	125 V
NKK Switches LB25CGW01-CF-A	100000 Cycles	1000000 Cycles	On-Mom	Black	Panel Mount Snap-In	DPDT	Button Round	22 mm	2 VDC 2.2 VDC	30 V	No Marking	3 A	Illuminated Standard	50 °C	-25 °C	Green/Red LED	Solder Quick Connect - 0.110" (2.8mm)	125 V

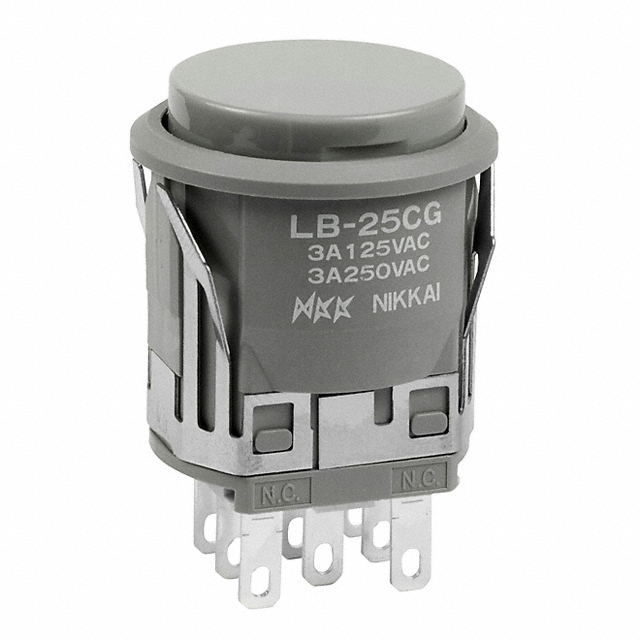

NKK Switches LB25CGW01/UC-H	100000 Cycles	1000000 Cycles	On-Mom		Panel Mount Snap-In	DPDT	Button Round	22 mm		30 V	No Marking	3 A	Standard	70 °C	-25 °C		Solder Quick Connect - 0.110" (2.8mm)	125 V
NKK Switches LB25CGW01/CUL	100000 Cycles	1000000 Cycles	On-Mom		Panel Mount Snap-In	DPDT	Plunger for Cap	22 mm		30 V	No Marking	3 A	Standard	70 °C	-25 °C		Solder Quick Connect - 0.110" (2.8mm)	125 V
