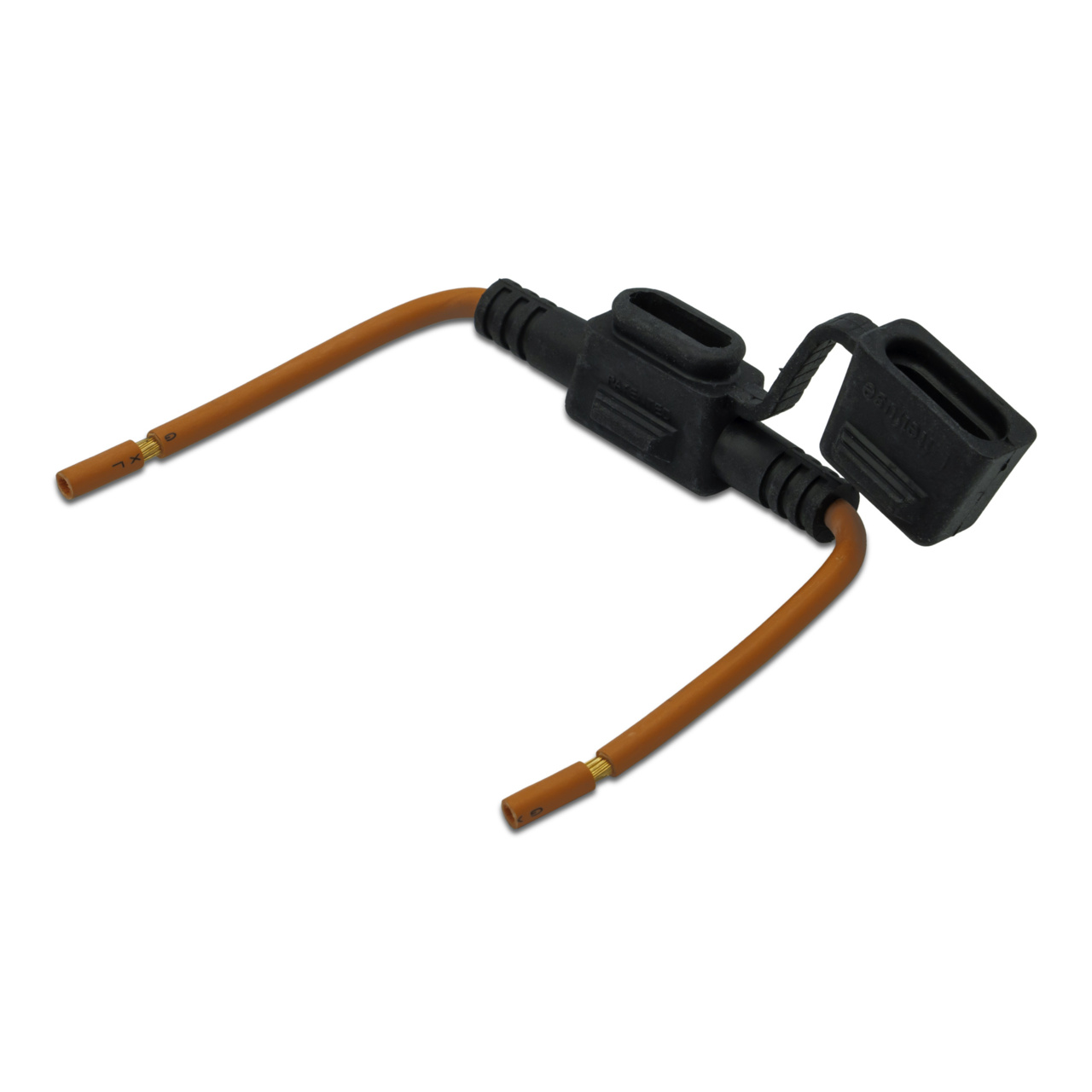

0FHM0002ZXJF Series
HOLDER MINI INLINE ORANGE WIRE 60/60MM
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
HOLDER MINI INLINE ORANGE WIRE 60/60MM
Key Features
• Compatible with 32 V and 58 V MINI® blade fuses up to 30 A (sold separately)
• Black UL 94 V-0 TPV body and cover create an IP67-rated dustproof and waterproof enclosure
• Heat-resistant 12 AWG GXL cross-link wire leads with orange insulation
• 2.36" (60mm) lead wires with 0.394" (10mm) end strips
• Tin-plated copper alloy contacts
Description
AI
The MINI® FHM Series 58V Heavy-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features a built-in cover that connects with the fuse holder body to form a sealed enclosure. The protective enclosure meets IP67 dustproof and waterproof standards. This model of the MINI® FHM Series fuse holder (0FHM0002ZXJF) features a black TPV body and cover and 12 AWG GXL wire leads for heavy-duty applications. The lead wires with orange insulation are 2.36" (60mm) long and have 0.394" (10mm) end strips. The UL 94 V-0-rated fuse holder accepts up to 30-amp MINI® blade fuses (sold separately).
