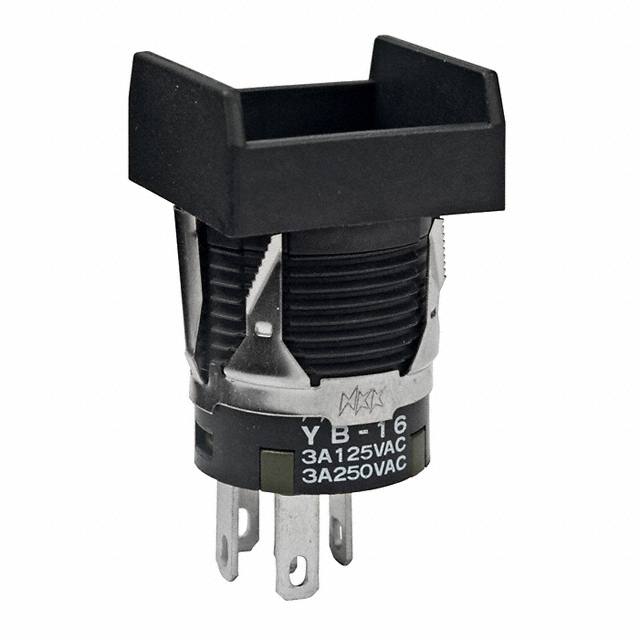

YB16KK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON SPDT 3A 125V
| Part | Electrical Life | Mechanical Life | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Features | Termination Style | Actuator Marking | Voltage Rating - AC | Circuit | Type | Mounting Type | Actuator Type | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 70 °C | 16 mm | 30 V | 3 A | Red | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Standard | Panel Mount Snap-In | Button Square | ||
 NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 50 °C | 16 mm | 30 V | 3 A | Clear | Tactile Feedback | PC Pin | No Marking | 125 V | SPDT | Illuminated Standard | Panel Mount Snap-In | Button Square | Amber LED | 5 VDC |
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 50 °C | 16 mm | 30 V | 3 A | Clear | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Illuminated Standard | Panel Mount Snap-In | Button Square | Green LED | 3.3 VDC |
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 50 °C | 16 mm | 30 V | 3 A | Clear | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Illuminated Standard | Panel Mount Snap-In | Button Square | Green LED | 5 VDC |
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 50 °C | 16 mm | 30 V | 3 A | Clear | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Illuminated Standard | Panel Mount Snap-In | Button Square | Green LED | 12 VDC |
 NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 70 °C | 16 mm | 30 V | 3 A | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Standard | Panel Mount Snap-In | Plunger for Cap | |||
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 70 °C | 16 mm | 30 V | 3 A | Tactile Feedback | PC Pin | No Marking | 125 V | SPDT | Standard | Panel Mount Snap-In | Plunger for Cap | |||
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 50 °C | 16 mm | 30 V | 3 A | Clear | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Illuminated Standard | Panel Mount Snap-In | Button Square | Green/Red LED | 5 VDC |
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 70 °C | 16 mm | 30 V | 3 A | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Standard | Panel Mount Snap-In | Plunger for Cap | |||
NKK Switches | 100000 Cycles | 200000 Cycles | On-On | -25 °C | 70 °C | 16 mm | 30 V | 3 A | Yellow | Tactile Feedback | Solder Quick Connect - 0.110" (2.8mm) | No Marking | 125 V | SPDT | Standard | Panel Mount Snap-In | Button Square |
