M2024Q4 Series
Manufacturer: NKK Switches
Beta
⌘K

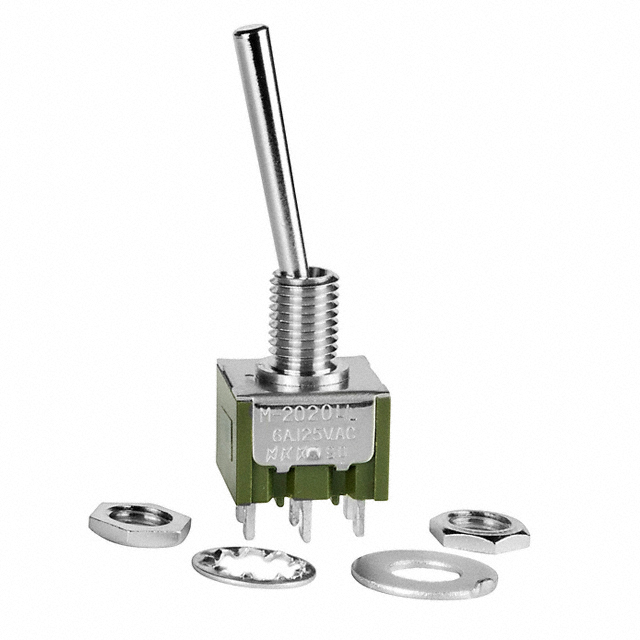

SWITCH TOGGLE ON ON ON SP3T SMALL CONE LEVER SOLDER LUG 6A 250VAC 30VDC PANEL MOUNT WITH THREADS
| Part | Electrical Life | Actuator Material | Actuator Type | Switch Function | Illumination | Mounting Type | Voltage Rating - AC | Features | Bushing Thread | Bushing Thread | Circuit | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Standard Round | On-On-On | Non-Illuminated | Panel Mount | 125 V | Jumper needed to achieve triple throw | 0.75 | M6 | SP3T | 30 V | 6.5 mm | 85 °C | -30 ░C | 21.3 mm | 3 A 6 A | Solder Lug |
