BBPY Series

Catalog

FERRITE BEADS MULTI-LAYER 1.5KOHM 25% 100MHZ 1A 0.3OHM DCR 0805 T/R

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Number of Lines	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Impedance @ Frequency	Current Rating (Max) [Max]	Height (Max) [z]	Package / Case	Size / Dimension [y]	Height (Max) [z]	DC Resistance (DCR) (Max)	Filter Type
Pulse Electronics BBPY00201209152Y00	0805	-55 C	125 °C	Surface Mount	300 mOhm	0.043 in	1.1 mm	1	2 mm	1.25 mm	0.049 "	0.079 in	1.5 kOhms	1 A
Pulse Electronics BBPY00321611101Y00	1206 (3216 Metric)	-55 C	125 °C	Surface Mount	30 mOhm		1.3 mm	1	3.2 mm	1.6 mm	0.063 "	0.126 "	100 Ohms	3 A	0.051 in
Pulse Electronics BBPY00160808301Y00	0603	-55 C	125 °C	Surface Mount	0.12 Ohm		0.95 mm	1	1.6 mm		0.031 in	0.063 "	300 Ohms	1.5 A		1608 Metric	0.8 mm	0.037 in
Pulse Electronics BBPY00100505800Y00	0402 (1005 Metric)	-55 C	125 °C	Surface Mount			0.024 in 0.6 mm	1	1 mm	0.5 mm	0.02 in	0.039 "	80 Ohms	1.2 A					90 mOhm
Pulse Electronics BBPY00160808300Y00	0603	-55 C	125 °C	Surface Mount	30 mOhm		0.95 mm	1	1.6 mm		0.031 in	0.063 "	30 Ohms	3 A		1608 Metric	0.8 mm	0.037 in

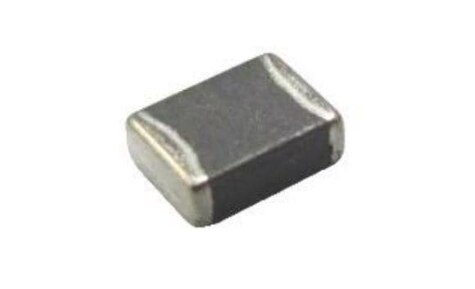

Pulse Electronics BBPY00060303121Y00	0201	-55 C	125 °C	Surface Mount	230 mOhm		0.33 mm	1	0.024 in	0.012 in	0.3 mm	0.6 mm	120 Ohms	450 mA	0.013 in	0603 Metric				Power Line
Pulse Electronics BBPY00201209471Y00	0805	-55 C	125 °C	Surface Mount	100 mOhm	0.043 in	1.1 mm	1	2 mm	1.25 mm	0.049 "	0.079 in	470 Ohms	2 A
Pulse Electronics BBPY00160808201Y00	0603	-55 C	125 °C	Surface Mount			0.95 mm	1	1.6 mm		0.031 in	0.063 "	200 Ohms	2 A		1608 Metric	0.8 mm	0.037 in	95 mOhm	Power Line
Pulse Electronics BBPY00321611500Y00	1206 (3216 Metric)	-55 C	125 °C	Surface Mount	20 mOhm		1.3 mm	1	3.2 mm	1.6 mm	0.063 "	0.126 "	50 Ohms	4 A	0.051 in
Pulse Electronics BBPY00100505400Y00	0402 (1005 Metric)	-55 C	125 °C	Surface Mount	50 mOhm		0.024 in 0.6 mm	1	1 mm	0.5 mm	0.02 in	0.039 "	40 Ohms	1.5 A						Power Line
