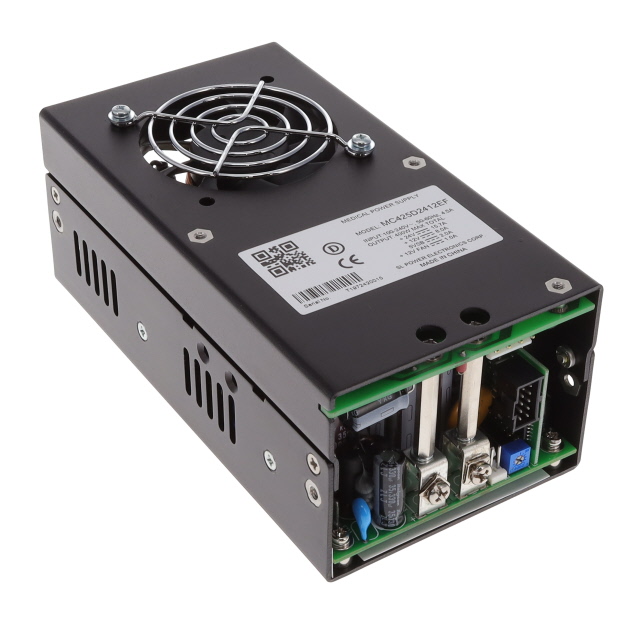

MC425D2412 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC CONVERTER 24V 12V
| Part | Applications | Voltage - Output 3 | Voltage - Isolation | Efficiency | Voltage - Output 1 | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Current - Output 4 | Current - Output 2 | Current - Output 3 | Type | Number of Outputs | Voltage - Output 2 | Features | Voltage - Output 4 | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Medical | 12 V | 4500 V | 88 % | 24 V | CE CSA cURus DEMKO EN IEC UL | 264 VAC | 90 VAC | 70 °C | -10 °C | 15.7 A | 2.68 in | 86 mm | 157.4 mm | 6.2 in | 3.4 in | 68 mm | 1 A | 2 A | 8 A | Enclosed | 4 | 5 V | Adjustable Output PFC Remote Sense Standby Output Universal Input | 12 V | 60601-1 |
