kag Series
Manufacturer: E-Switch
Beta
⌘K

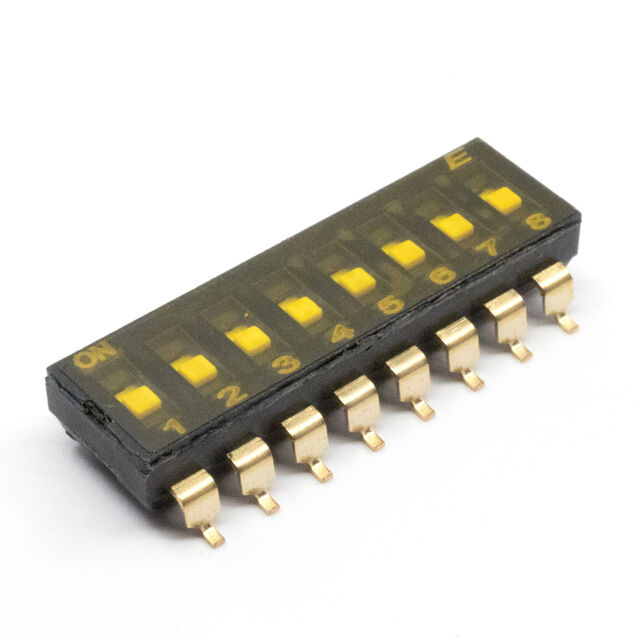

SWITCH: DIP-SWITCH; POLES NUMBER: 8; ON-ON; 0.025A/24VDC; POS: 2/8
| Part | Electrical Life | Mechanical Life | Length [x] | Length [x] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Level | Pitch | Pitch | Washable | Voltage Rating | Number of Positions | Actuator Type | Current Rating (Amps) | Circuit | Height Above Board [z] | Height Above Board [z] | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000 Cycles | 1000 Cycles | 21.32 mm | 0.839 in | Gull Wing | -40 C | 105 ░C | Flush Recessed | 2.54 mm | 0.1 " | 24 VDC | 8 | Slide (Standard) | 25 mA | SPST | 0.157 in | 4 mm | Surface Mount | Gold |
