C1206Y Series
Manufacturer: KEMET
Beta
⌘K

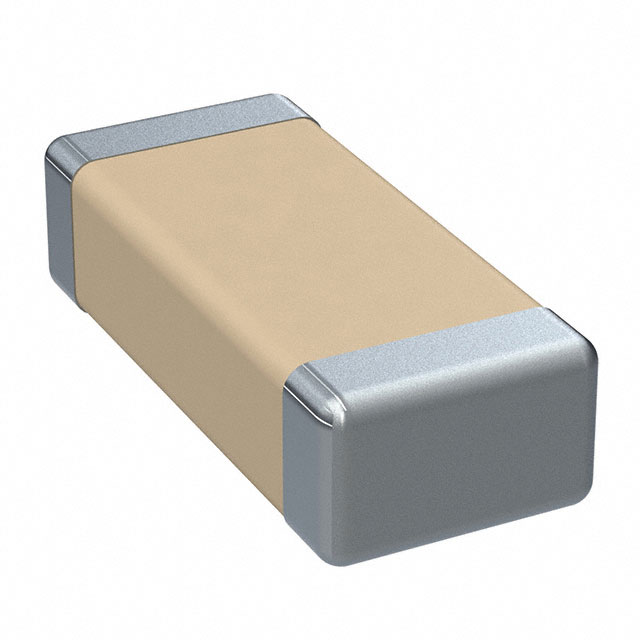

CAP CER 0.022UF 200V X7R 1206
| Part | Temperature Coefficient | Tolerance | Features | Mounting Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Package / Case | Voltage - Rated | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Capacitance | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 200 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 0.022 µF | |
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 50 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 0.0033 µF | |
 KEMET | X7R | 5 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.039 in | 0.98 mm | 1206 (3216 Metric) | 50 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.126 " | 3.2 mm | ||
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 50 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 2200 pF | |
KEMET | X7R | 5 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.039 in | 0.98 mm | 1206 (3216 Metric) | 50 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.126 " | 3.2 mm | 0.022 µF | |
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 100 V | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 10000 pF | |
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 100 V | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 0.022 µF | |
 KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.039 in | 0.98 mm | 1206 (3216 Metric) | 50 VDC | Automotive Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 100000 pF | AEC-Q200 |
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 50 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | ||
KEMET | X7R | 10 % | Floating Electrode Soft Termination | MLCC Surface Mount | 0.035 " | 0.88 mm | 1206 (3216 Metric) | 200 VDC | Boardflex Sensitive | -55 C | 125 °C | 1.6 mm | 0.063 " | 0.13 " | 3.3 mm | 15000 pF |
