0ZCG Series

Catalog

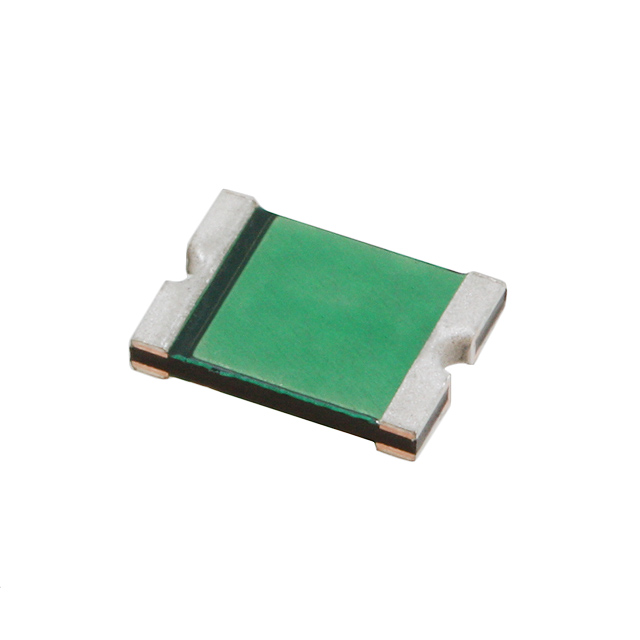

PTC RESET FUSE 24V 1.5A 1812

Part	Approval Agency	Current - Max [Max]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Qualification	Time to Trip	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Grade	Voltage - Max [Max]	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]
Bel Fuse Inc. 0ZCG0150BF2C	AEC-Q200 cURus TUV	100 A	Polymeric	85 °C	-40 C	120 mOhms	Surface Mount	40 mOhms	AEC-Q200	1.5 s	1812 (4532 Metric) Concave	0.179 in	3.24 mm	0.128 "	4.55 mm	Automotive	24 V	3 A	1.5 A	1.55 mm	0.061 in
Bel Fuse Inc. 0ZCG0075AF2B	AEC-Q200 cURus TUV	40 A	Polymeric	85 °C	-40 C	290 mOhms	Surface Mount	0.11 Ohms	AEC-Q200	0.2 s	1812 (4532 Metric) Concave	0.179 in	3.24 mm	0.128 "	4.55 mm	Automotive	24 V	1.5 A	750 mA	1.55 mm	0.061 in
Bel Fuse Inc. 0ZCG0035AF2C	AEC-Q200 cURus TUV	40 A	Polymeric	85 °C	-40 C	1.5 Ohms	Surface Mount	320 mOhms	AEC-Q200	100 ms	1812 (4532 Metric) Concave	0.179 in	3.24 mm	0.128 "	4.55 mm	Automotive	30 V	700 mA	350 mA	0.7 mm	0.028 in
