NMNT Series

Catalog

TRIMMER / VARIABLE CAPACITORS VARCAP, 23 PF, 12000 VDC

Part	Voltage - Rated	Adjustment Type	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance Range [Max]	Capacitance Range [Min]	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)	Q @ Freq [custom]	Q @ Freq [custom]	Height - Seated (Max) [Max]
Knowles Syfer NMNT23-12ENL
Knowles Syfer NMNT25-6NLFS	3000 V	Bottom	Polytetrafluoroethylene (PTFE)	41.15 mm	1.62 in	25 pF	5 pF	Non-Magnetic	1.6 mm	0.063 "	Through Hole
Knowles Syfer NMNT20-9NL

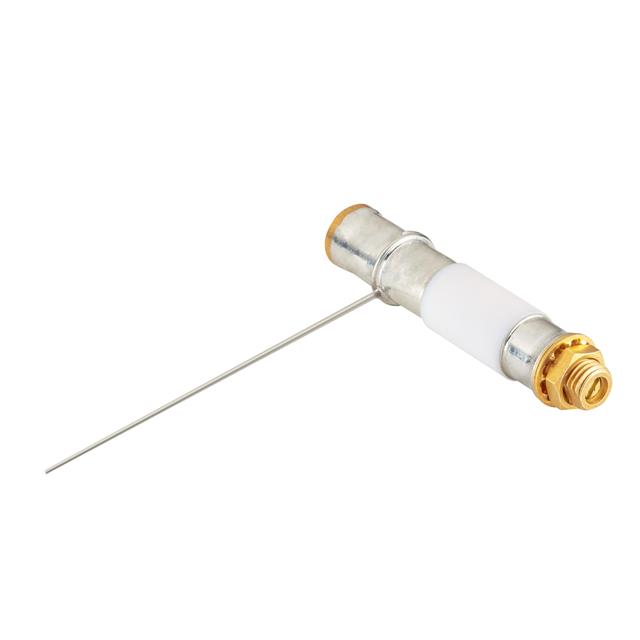

Knowles Syfer NMNT23-6	3000 V	Top	Polytetrafluoroethylene (PTFE)			23 pF	3 pF	Non-Magnetic	9.65 mm	0.38 "	Panel Mount	-65 ░C	125 °C	1.7 in	43.18 mm
Knowles Syfer NMNT5-8E	4000 V	Side				5 pF	1 pF	General Purpose	9.53 mm	0.375 "	Panel Mount	-55 C	125 °C	1.13 in		2000	25 MHz	28.7 mm
Knowles Syfer NMNT70-6NL	3000 V	Side				70 pF	2.5 pF	Sealed	76.2 mm	3 in	Panel Mount	-55 C	125 °C	0.7 "				17.78 mm
Knowles Syfer NMNT10-3E
Knowles Syfer NMNT10-4E	2000 V	Side	Polytetrafluoroethylene (PTFE)			10 pF	1 pF	Sealed			Panel Mount	-55 C	125 °C
Knowles Syfer NMNT10-4	2000 V	Side				10 pF	1 pF	Sealed			Panel Mount	-55 C	125 °C
Knowles Syfer NMNT23-12E	6000 V	Top	Polytetrafluoroethylene (PTFE)	46.86 mm	1.845 in	23 pF	3 pF	Non-Magnetic	14.73 mm	0.58 in	Panel Mount	-65 ░C	125 °C
