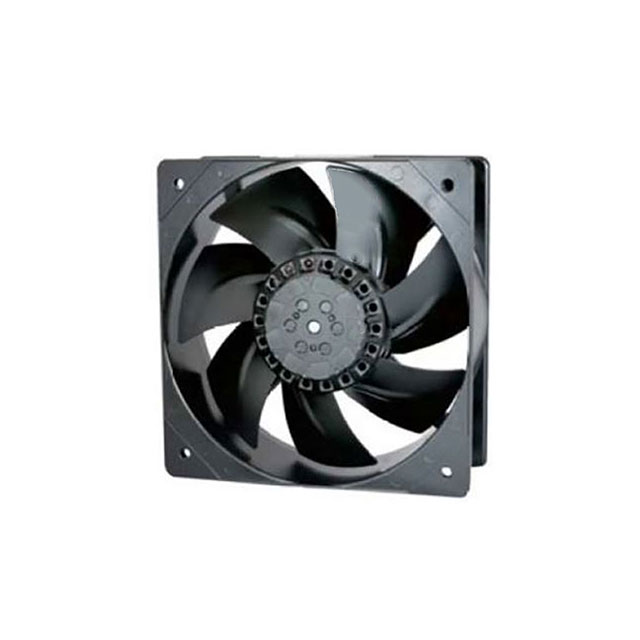

OA205AP Series

Catalog

AC FANS AXIAL FAN, 205X205X72MM, 115VAC, 590CFM, 80W, 67.4DBA, BALL, WIRE, IP69K

Part	Material - Blade	Lifetime @ Temp.	Material - Frame	Ingress Protection	Width [x]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Bearing Type	Noise	Features	Termination	Voltage - Rated	Air Flow	Air Flow	Fan Type	Weight	Weight	Power (Watts)	RPM	Termination
ORION FANS OA205AP-11-1WB1869K	Steel	50000 Hrs	Aluminum	IP69K	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	115 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM
ORION FANS OA205AP-22-1WB1868	Steel	50000 Hrs	Aluminum	IP68 - Dust Tight Waterproof	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	230 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM
ORION FANS OA205AP-22-1TB1868	Steel	50000 Hrs	Aluminum	IP68 - Dust Tight Waterproof	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)		230 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM	2
ORION FANS OA205AP-22-1WB1869K	Steel	50000 Hrs	Aluminum	IP69K	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	230 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM
ORION FANS OA205AP-11-1TB1869K	Steel	50000 Hrs	Aluminum	IP69K	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)		115 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM	2
ORION FANS OA205AP-22-1TB1869K	Steel	50000 Hrs	Aluminum	IP69K	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)		230 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM	2
ORION FANS OA205AP-11-1WB1868	Steel	50000 Hrs	Aluminum	IP68 - Dust Tight Waterproof	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	115 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM

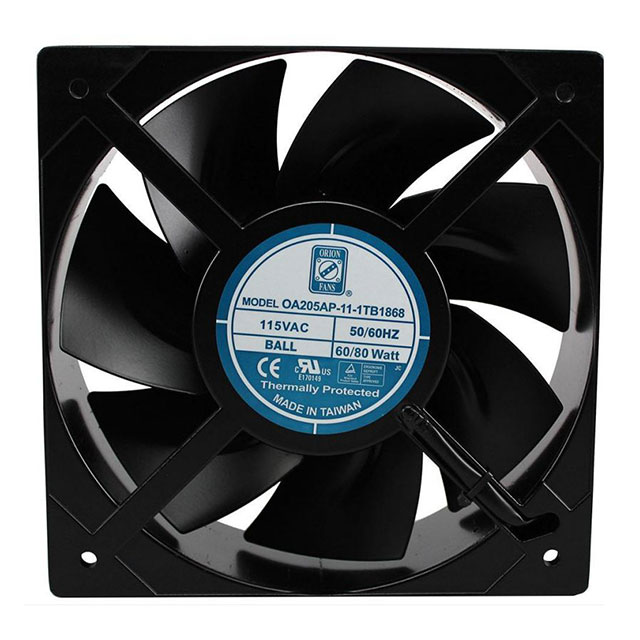

ORION FANS OA205AP-11-1TB1868	Steel	50000 Hrs	Aluminum	IP68 - Dust Tight Waterproof	72 mm	CE cURus TUV UR	205 mm	205 mm	0.86 in H2O	214.2 Pa	Ball	67 dB	Capacitor Thermal Overload Protector (TOP)		115 VAC	16.52 mł/min	590 CFM	Tubeaxial	5.2 lbs	2.4 kg	80 W	3000 RPM	2
