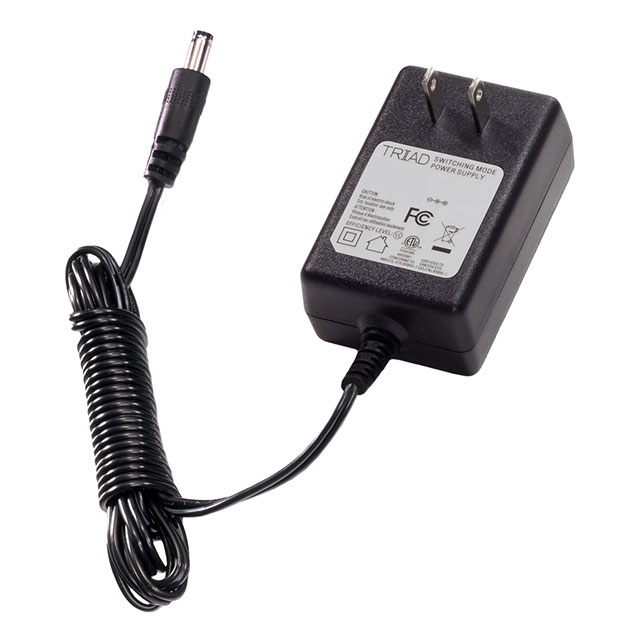

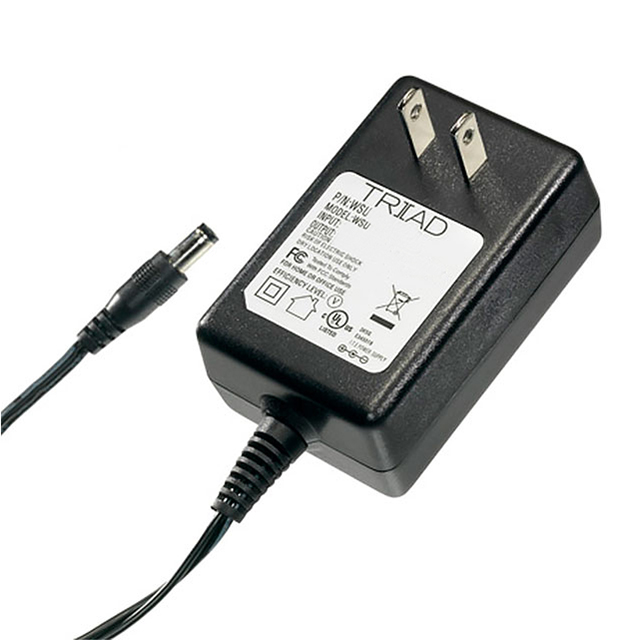

WSU Series

Catalog

WALL MOUNT AC ADAPTERS 100-240V WALL PLUG-IN PWR SUPPLY 15.0VDCA.1200MA CUL, CENTER NEG, PLUG = 2.1MM(ID) X 5.5MM(OD) X 11MM(L)

Part	No Load Power Consumption	Current - Output (Max) [Max]	Form	Cord Length	Cord Length	Applications	Input Connector	Polarization	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Power (Watts)	Voltage - Output	Efficiency	Region Utilized	Operating Temperature [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Size / Dimension
Triad Magnetics WSU150-1200-R	100 mW	1.2 A	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Negative Center	Fixed Blade	48 mm	3.03 in	1.89 in	31 mm	1.22 in	77 mm	264 VAC	90 VAC	cETLus	18 W	15 V	Level VI	North America	40 °C	11 mm	2.1 mm 5.5 mm	Barrel Plug
Triad Magnetics WSU150-1200	100 mW	1.2 A	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Positive Center	Fixed Blade	48 mm	3.03 in	1.89 in	31 mm	1.22 in	77 mm	264 VAC	90 VAC	cETLus	18 W	15 V	Level VI	North America	40 °C	11 mm	2.1 mm 5.5 mm	Barrel Plug
Triad Magnetics WSU120-0700	100 mW	700 mA	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Positive Center	Fixed Blade		2.8 in	1.69 "		1.18 in		264 VAC	90 VAC	cETLus	8.4 W	12 V	Level VI	North America	40 °C	11 mm	2.1 mm 5.5 mm	Barrel Plug	30 mm 43 mm 71 mm
Triad Magnetics WSU060-1250-13	100 mW	1.25 A	Wall Mount	1.52 m	60 in	ITE (Commercial)	NEMA 1-15P	Positive Center	Fixed Blade		2.8 in	1.69 "		1.18 in		264 VAC	90 VAC	cETLus	7.4 W	5.9 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug	30 mm 43 mm 71 mm
Triad Magnetics WSU090-1300	100 mW	1.3 A	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Positive Center	Fixed Blade		2.8 in	1.69 "		1.18 in		264 VAC	90 VAC	cETLus	12 W	9 V	Level VI	North America	40 °C	11 mm	2.1 mm 5.5 mm	Barrel Plug	30 mm 43 mm 71 mm
Triad Magnetics WSU120-0700-13	100 mW	700 mA	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Positive Center	Fixed Blade		2.8 in	1.69 "		1.18 in		264 VAC	90 VAC	cETLus	8.4 W	12 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug	30 mm 43 mm 71 mm
Triad Magnetics WSU120-1500-R13	100 mW	1.5 A	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Negative Center	Fixed Blade	48 mm	3.03 in	1.89 in	31 mm	1.22 in	77 mm	264 VAC	90 VAC	cETLus	18 W	12 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug
Triad Magnetics WSU180-0450-R13	100 mW	450 mA	Wall Mount	1.83 m	72 in	ITE (Commercial)	NEMA 1-15P	Negative Center	Fixed Blade	43 mm	2.36 "	1.69 "	31 mm	1.22 in	60 mm	264 VAC	90 VAC	cETLus	8.1 W	18 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug
Triad Magnetics WSU075-2400-R13	100 mW	2.4 A	Wall Mount	1.52 m	60 in	ITE (Commercial)	NEMA 1-15P	Negative Center	Fixed Blade	48 mm	3.03 in	1.89 in	31 mm	1.22 in	77 mm	264 VAC	90 VAC	cETLus	18 W	7.5 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug
Triad Magnetics WSU050-1500-R13	100 mW	1.5 A	Wall Mount	1.52 m	60 in	ITE (Commercial)	NEMA 1-15P	Negative Center	Fixed Blade		2.8 in	1.69 "		1.18 in		264 VAC	90 VAC	cETLus	7.5 W	5 V	Level VI	North America	40 °C	11 mm	2.5 mm 5.5 mm	Barrel Plug	30 mm 43 mm 71 mm
