45096 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

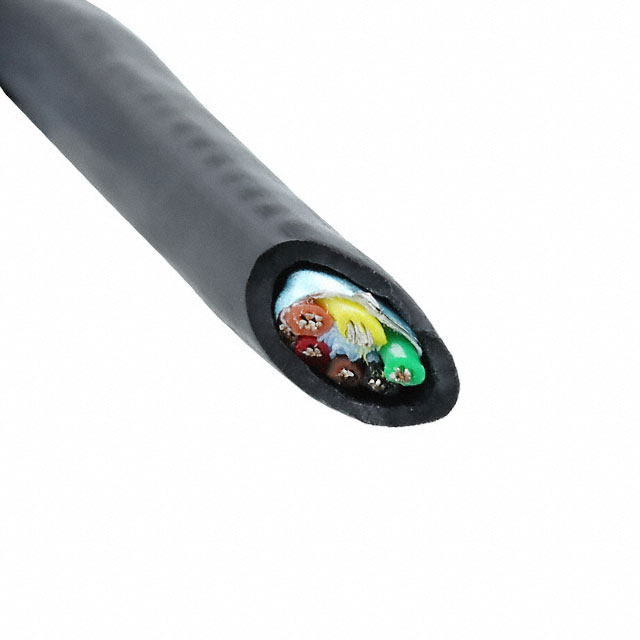

CABLE 6COND 24AWG BLK SHLD FEET
| Part | Spool Size [x] | Spool Size [x] | Shield Material | Shield Coverage | Features | Jacket Color | Length | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Voltage | Number of Conductors | Ratings | Wire Gauge | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | Aluminum | 100 % | Biological Compatibility Drain Wire Rip Cord | Black | Enter Number of Feet in Order Quantity | Multi-Conductor | 6.63 mm | 0.261 in | 0.042 in | 1.067 mm | TPE | Thermoplastic Elastomer | 7 | 32 AWG | Thermoplastic Elastomer (TPE) | 125 °C | -50 °C | Foil | 300 VDC | 6 | ISO 10993 | 24 AWG | Copper Tinned |
