IN-S126 Series

Catalog

TOP VIEW / 1206 / 3.2X1.6X1.85 /

Part	Voltage - Forward (Vf) (Typ)	Type	Orientation	Radiant Intensity (Ie) Min (Typical)	Mounting Type	Current - DC Forward (If) (Max)	Wavelength	Viewing Angle	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Height (Max)	Lens Length	Lens Width	Configuration	Lens Color	Current - Test	Lens Style	Millicandela Rating	Size / Dimension Length	Size / Dimension Width	Color	Lens Transparency	Wavelength - Peak Colors	Wavelength - Peak (Green)	Wavelength - Peak (Red)	Wavelength - Peak (Blue)	Millicandela Rating Colors	Millicandela Rating (Blue)	Millicandela Rating (Red)	Millicandela Rating (Green)	Current - Test (Green)	Current - Test Colors	Current - Test (Red)	Current - Test (Blue)	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Blue)	Wavelength - Dominant	Wavelength - Peak	Current - Dark (Id) (Max)	Power - Max	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)
Inolux Corporation IN-S126ETIR	1.4 V	Infrared (IR)	Top View	20 mW/sr	Surface Mount	65 mA	850 nm	30 °	1206 (3216 Metric)	-40 °C	85 °C
Inolux Corporation IN-S126AT5UW	3 V				Surface Mount			120 °	1206 (3216 Metric)			1206	1.1 mm	2 mm	1.5 mm	Standard	Colorless	5 mA	Flat Top Rectangle	180 mcd	3.2 mm	1.5 mm	White	Clear

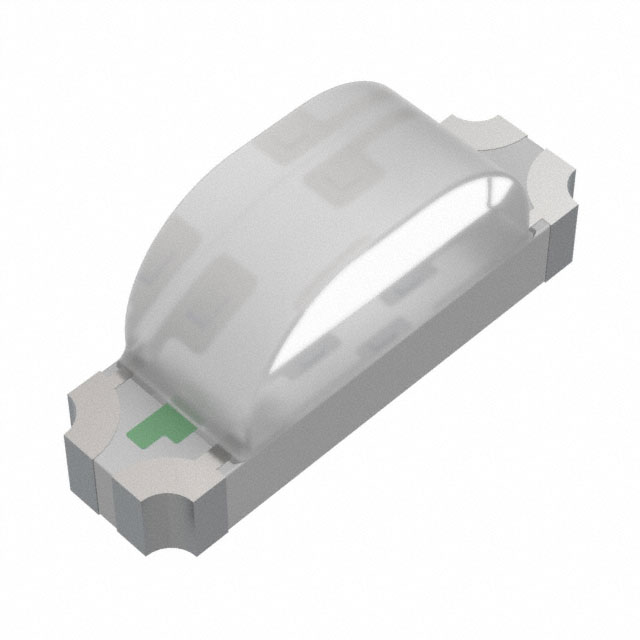

Inolux Corporation IN-S126TASRGB					Right Angle Surface Mount			120 °	4-SMD			1206	1 mm	2.2 mm	1 mm	Common Anode	Colorless		Domed Top Rectangle		3.2 mm	1.5 mm	Blue (RGB) Green Red	Clear	Blue Green Red	523 nm	625 nm	470 nm	Blue Green Red	200 mcd	250 mcd	1100 mcd	20 mA	Blue Green Red	20 mA	20 mA	Blue Green Red	2.8 V	1.6 V	2.8 V
Inolux Corporation IN-S126ATY	2 V				Surface Mount			120 °	1206 (3216 Metric)			1206	1.1 mm	2 mm	1.5 mm	Standard	Colorless	20 mA	Flat Top Rectangle	120 mcd	3.2 mm	1.5 mm	Yellow	Clear																	591 nm	594 nm
Inolux Corporation IN-S126ATB	3.2 V				Surface Mount			120 °	1206 (3216 Metric)			1206	1.1 mm	2 mm	1.5 mm	Standard	Colorless	20 mA	Flat Top Rectangle	140 mcd	3.2 mm	1.5 mm	Blue	Clear																	468 nm	472 nm

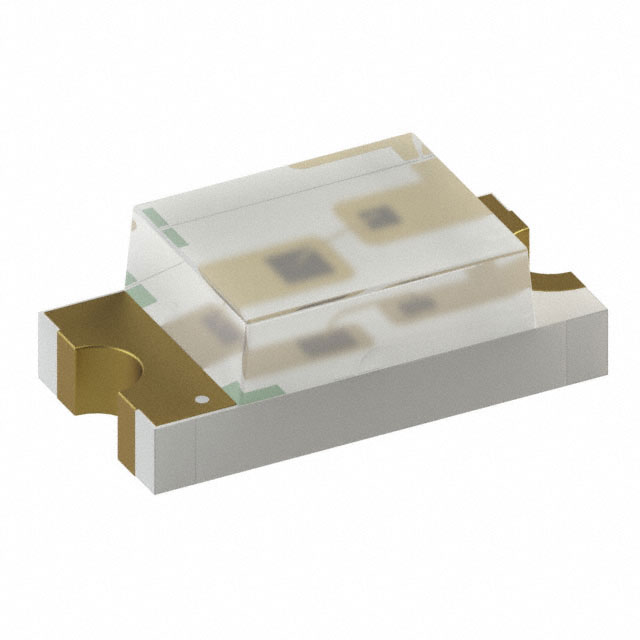

Inolux Corporation IN-S126BTNPT			Top View		Surface Mount		940 nm		1206 (3216 Metric)	-40 °C	80 °C																																100 nA	150 mW	30 V	20 mA
Inolux Corporation IN-S126FSNPT			Side View		Right Angle Surface Mount		940 nm		2-SMD No Lead	-40 °C	85 °C																																100 nA	150 mW	35 V	20 mA
Inolux Corporation IN-S126ETHIR	1.2 V	Infrared (IR)	Top View	5 mW/sr	Surface Mount	100 mA	940 nm	30 °	1206 (3216 Metric)	-40 °C	85 °C
Inolux Corporation IN-S126DSHIR	1.5 V	Infrared (IR)	Top View	4.8 mW/sr	Right Angle Surface Mount	50 mA	940 nm	20 °	1210 (3225 Metric)	-40 °C	85 °C
Inolux Corporation IN-S126BTHIR	1.4 V	Infrared (IR)	Top View	0.85 mW/sr	Surface Mount	65 mA	940 nm	140 °	1206 (3216 Metric)	-40 °C	85 °C
