PTIH Series

Catalog

CONN RCPT MALE 4P TIN SOLDER CUP

Part	Insert Material	Applications	Contact Material	Features	Shell Finish	Shell Material	Termination	Mounting Type	Shielding	Primary Material	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Contact Finish - Mating	Color	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Number of Positions	Orientation	Connector Type

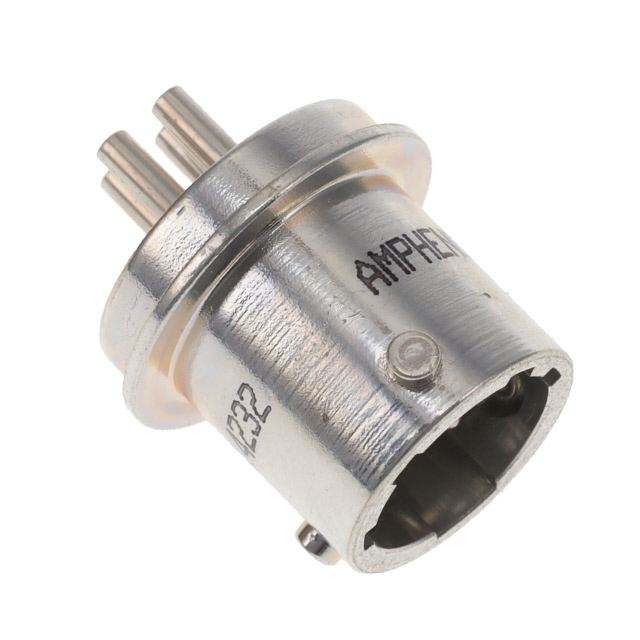

Amphenol Aerospace Operations PTIH-8-4P	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Hermetically Sealed	Cadmium Olive Drab Chromate	Aluminum	Solder Cup	Panel Mount	Unshielded	Metal	Bayonet Lock	4 mm	8 mm	Tin	Olive Drab	125 °C	-55 °C	5 A	4	N (Normal)	Male Pins Receptacle

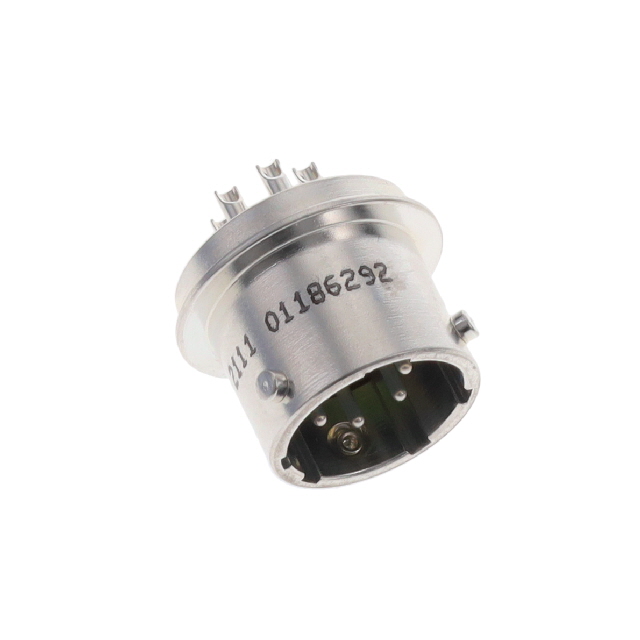

Amphenol Aerospace Operations PTIH-10-6P	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Hermetically Sealed	Cadmium Olive Drab Chromate	Aluminum	Solder Cup	Panel Mount	Unshielded	Metal	Bayonet Lock	6 mm	10 mm	Tin	Olive Drab	125 °C	-55 °C	5 A	6	N (Normal)	Male Pins Receptacle
