628-015 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN D-SUB RCPT 15POS VERT SLDR

...

Part	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Material Flammability Rating	Features	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Rows [custom]	Connector Type	Connector Style	Number of Positions	Termination	Mounting Type	Current Rating (Amps)	Contact Finish	Flange Feature	Shell Size, Connector Layout	Contact Finish Thickness

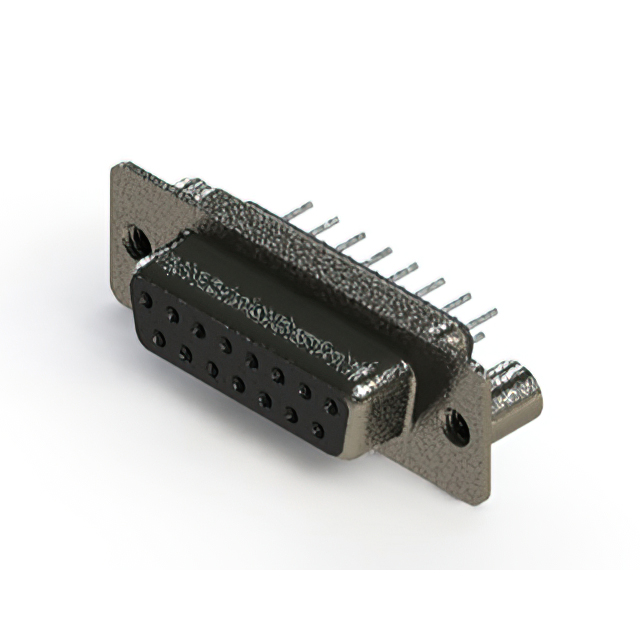

EDAC Inc. 628-015-320-069	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded	Nickel Plated Steel	0.38 µm	15 µin	Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2

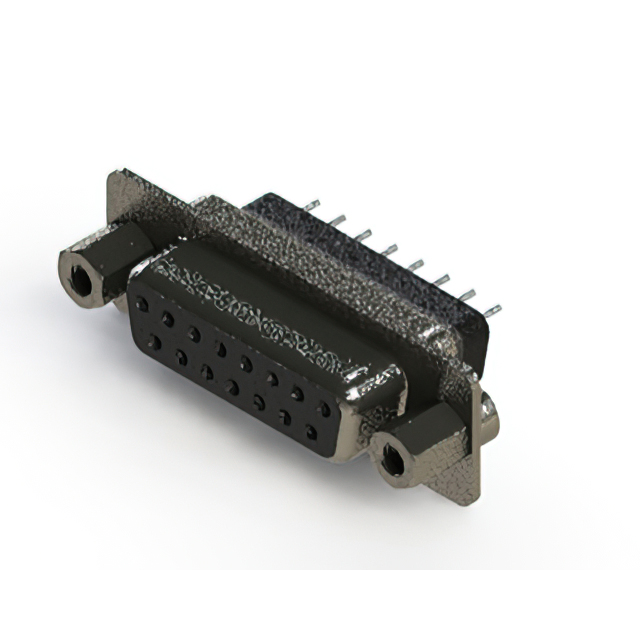

EDAC Inc. 628-015-228-063	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded	Nickel Plated Steel			Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2	Flash

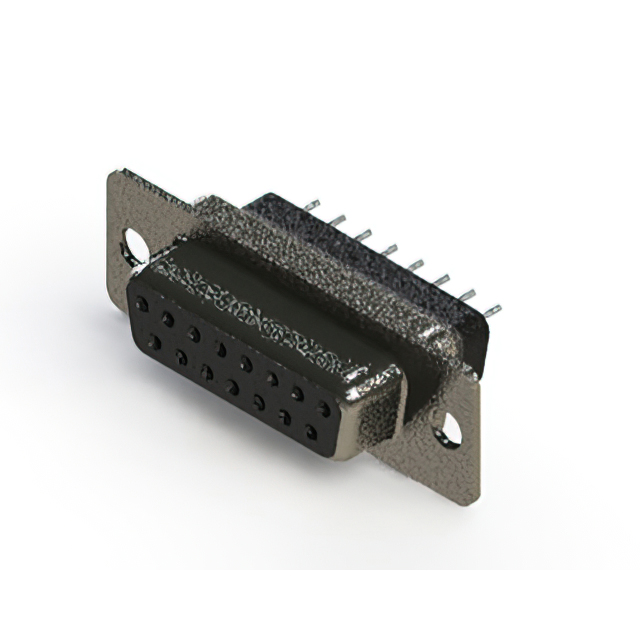

EDAC Inc. 628-015-228-261	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded				Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2	Flash

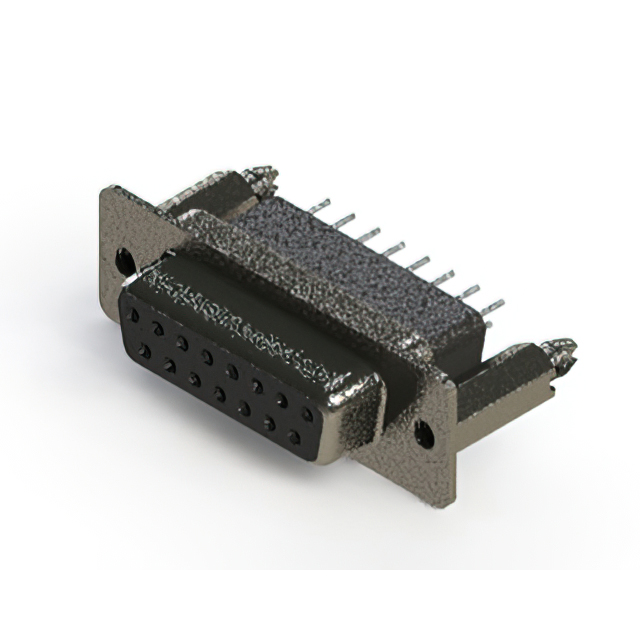

EDAC Inc. 628-015-241-276	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Board Lock Shielded				Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2	Flash

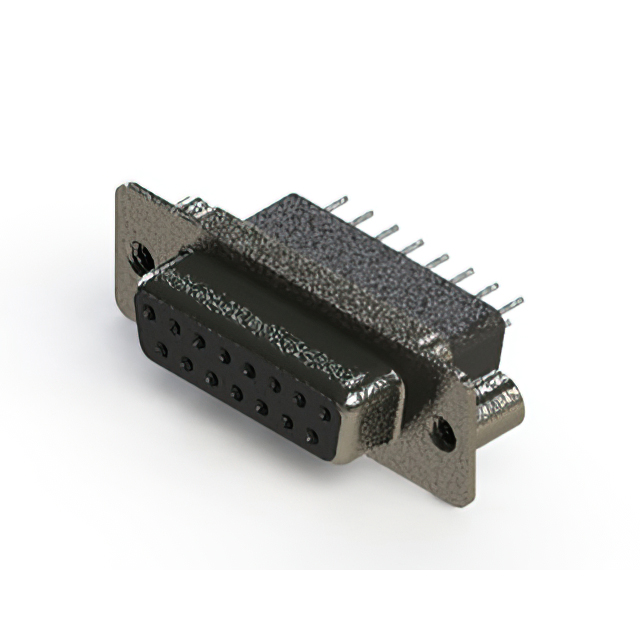

EDAC Inc. 628-015-621-079	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded	Nickel Plated Steel	0.76 Ám	30 Áin	Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2
EDAC Inc. 628-015-010-052	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded	Nickel Plated Steel			Signal and Power	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2

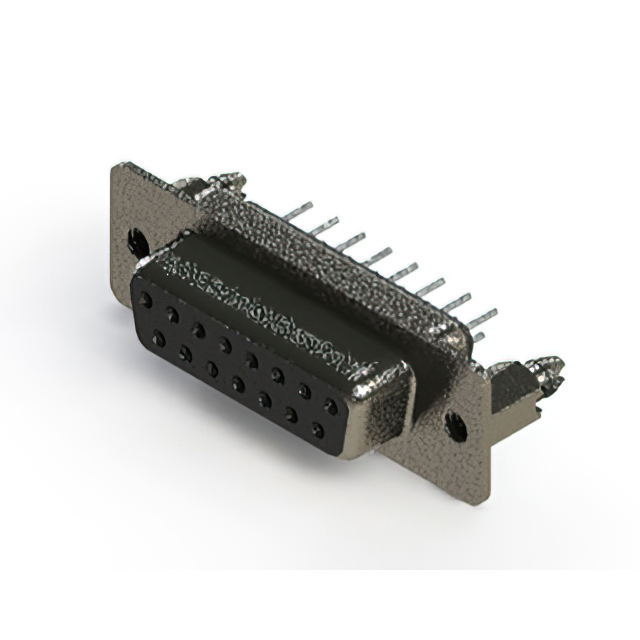

EDAC Inc. 628-015-620-046	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Board Lock Shielded	Nickel Plated Steel	0.76 Ám	30 Áin	Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2

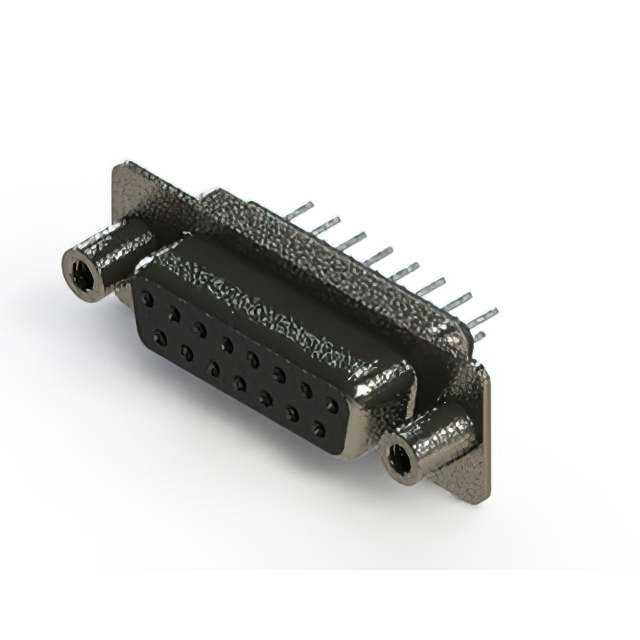

EDAC Inc. 628-015-620-068	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Shielded	Nickel Plated Steel	0.76 Ám	30 Áin	Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2

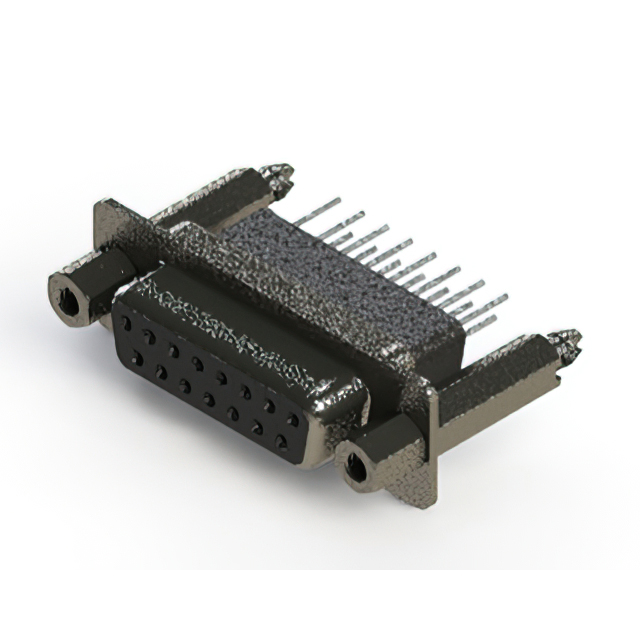

EDAC Inc. 628-015-381-277	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Board Lock Shielded		0.38 µm	15 µin	Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2
EDAC Inc. 628-015-261-257	Polyester Thermoplastic	Black	-55 C	85 °C	Brass	UL94 V-0	Board Lock Shielded				Signal	2	Receptacle Female Sockets	D-Sub	15	Solder	Through Hole	3 A	Gold	Board Side (4-40)	2	Flash
