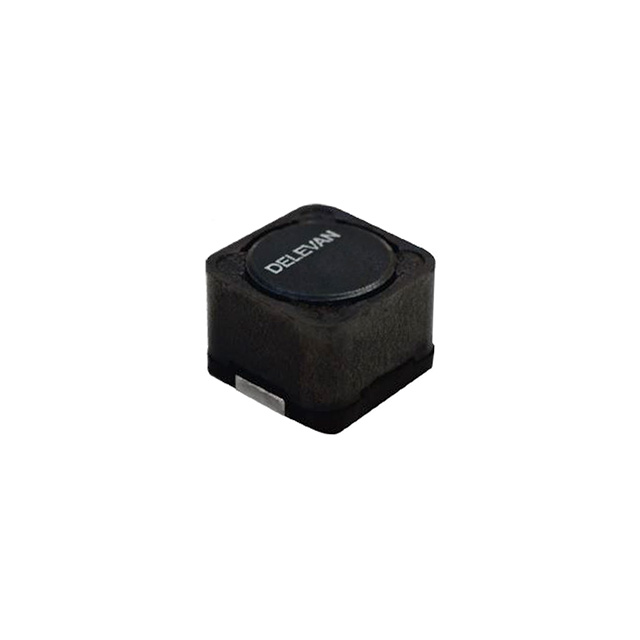

HRSPD127 Series
Manufacturer: Delevan
Beta
⌘K
POWER INDUCTORS - SMD 33UH 20% SMT MIL-STD-202
| Part | Material - Core | Package / Case | Inductance | Current - Saturation (Isat) | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Current Rating (Amps) | DC Resistance (DCR) [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] | Shielding | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delevan | Ferrite | Nonstandard | 33 µH | 3.17 A | 100 kHz | 130 °C | -55 C | 20 % | 2.8 A | 69 mOhm | 9.02 mm | 0.355 in | Shielded | Surface Mount | 12.07 mm | 0.475 in | 0.475 in | 12.07 mm |
Delevan | Ferrite | Nonstandard | 3.3 µH | 10 A | 100 kHz | 130 °C | -55 C | 20 % | 5.8 A | 18 mOhm | 9.02 mm | 0.355 in | Shielded | Surface Mount | 12.07 mm | 0.475 in | 0.475 in | 12.07 mm |
