STRATO-THERM DIAMOND GRIP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

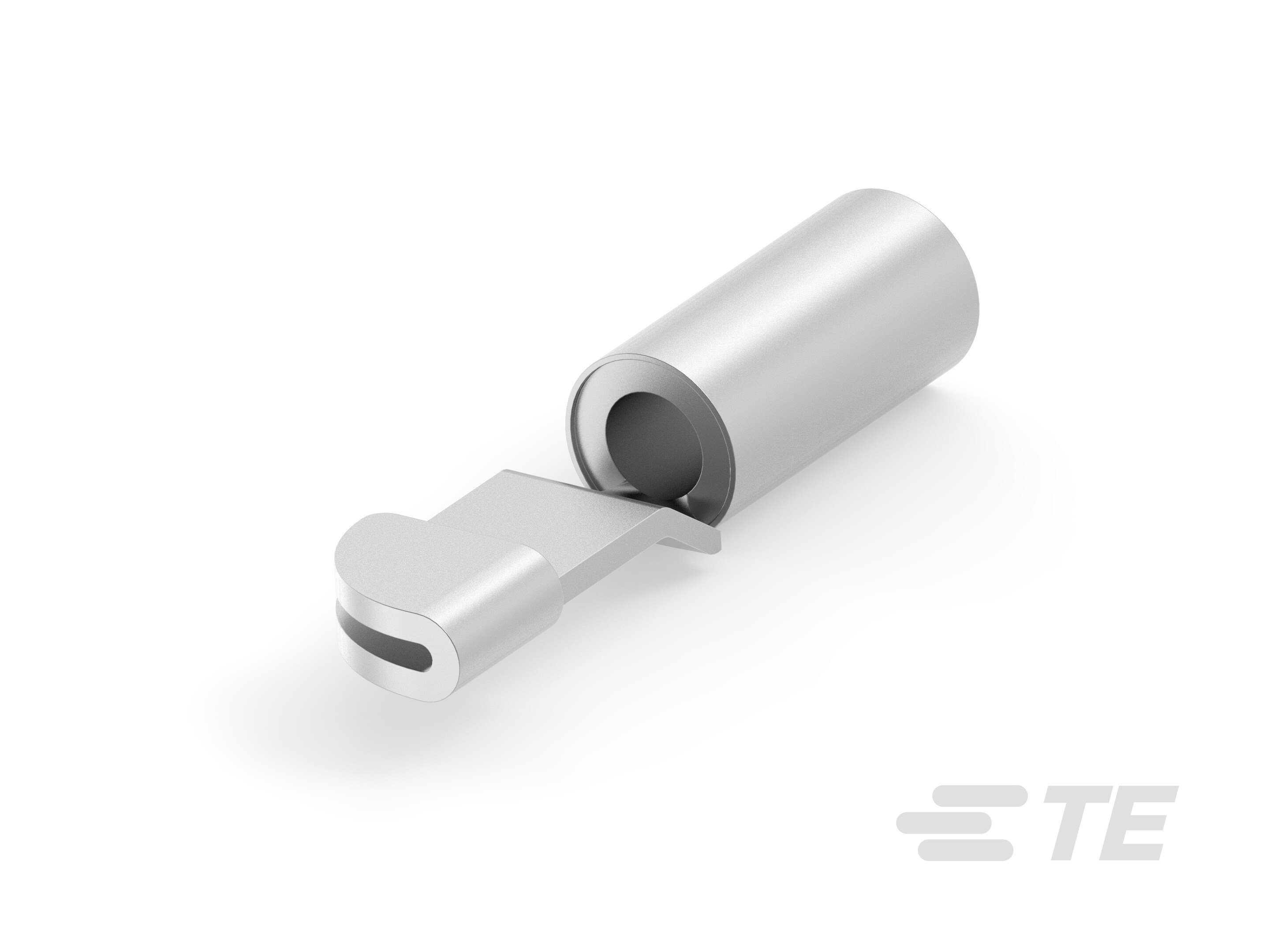

CONN KNIFE TERM 14-16 AWG
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Length - Overall [x] | Length - Overall [x] | Height Stacking (Mating) | Height Stacking (Mating) | Length - Overall | Length - Overall | Height Stacking (Mating) [z] | Height Stacking (Mating) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 14 AWG | 16 AWG | Non-Insulated | 0.794 in | 20.17 mm | 0.203 in | 5.16 mm | ||||
 TE Connectivity AMP Connectors | 10 AWG | 12 AWG | Non-Insulated | 30.15 mm | 1.187 in | 0.281 in | 7.14 mm |
