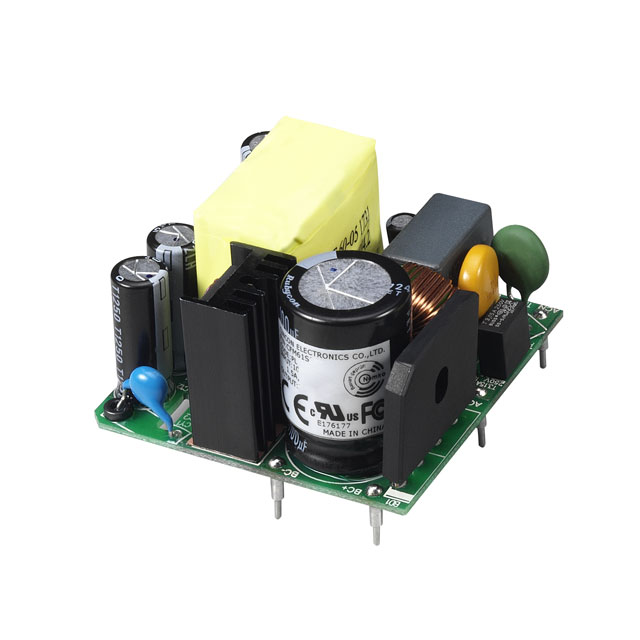

CFM61S Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
SWITCHING POWER SUPPLIES AC-DC MODULE, 60 WATT, OPEN FRAME, 90-264VAC INPUT, 15VDC OUTPUT
| Part | Line Regulation | Load Regulation | Current - Output (Max) [Max] | Type | Package / Case | Power (Watts) | Standard Number | Number of Outputs | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Efficiency | Features | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 1 % | ±1% | 4 A | Open Frame | 6-DIP Module | 60 W | 62368-1 | 1 | ITE (Commercial) | 264 VAC | 90 VAC | 15 V | 88 % | Universal Input | CE cURus FCC NEMKO | 1.35 in | 2 in | 50.8 mm | 50.8 mm | 34.2 mm | 2 in | Through Hole | -30 °C | 70 °C | ||
 Cincon Electronics Co. LTD | Open Frame | 40 W | 1 | ITE (Commercial) | 264 VAC | 90 VAC | 5 V | 86 % | Universal Input | CE cURus FCC NEMKO | 1.29 in | 2.7 in | 50.8 mm | 68.6 mm | 32.8 mm | 2 in | Chassis Mount | -30 °C | 70 °C | 8 A | 3000 V |
