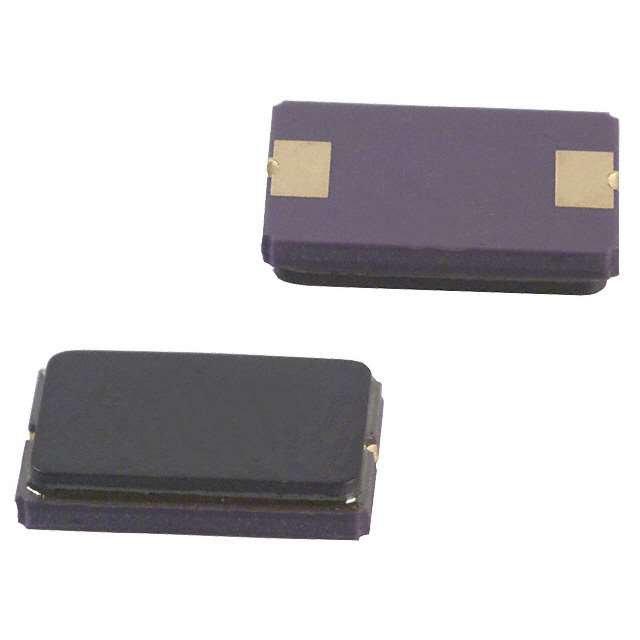

CSM-8A Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS CRYSTAL 30.0000MHZ SERIES SMD
| Part | Operating Mode | ESR (Equivalent Series Resistance) | Frequency Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Frequency Stability | Frequency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 3rd Overtone | 80 Ohm | 30 ppm | 0.067 in | 1.7 mm | MHz Crystal | 50 ppm | 30 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " | Surface Mount | 2-SMD No Lead | 70 °C | -10 °C |
ECS Inc. | Fundamental | 60 Ohms | 30 ppm | 0.067 in | 1.7 mm | MHz Crystal | 50 ppm | 14.31818 MHz | 5 mm | 7 mm | 0.197 " | 0.276 " | Surface Mount | 2-SMD No Lead | 70 °C | -10 °C |
