M2044SA Series
Manufacturer: NKK Switches
Beta
⌘K

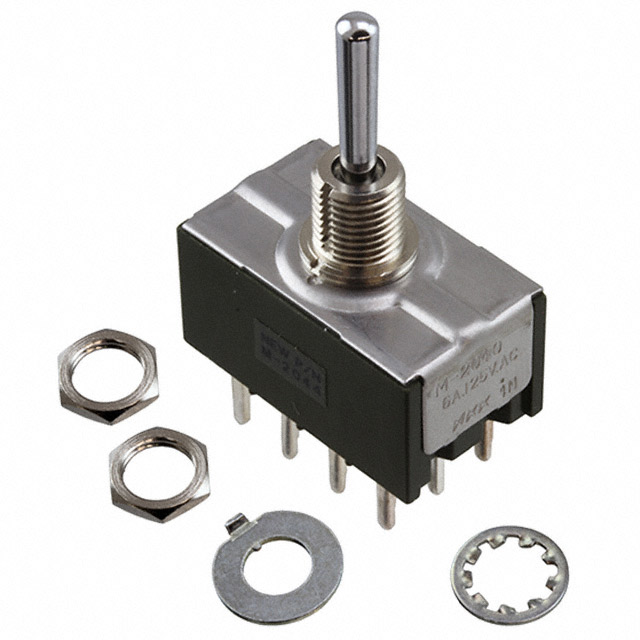

SWITCH TOGGLE DP3T 6A 125V
| Part | Electrical Life | Actuator Material | Voltage Rating - DC | Circuit | Current Rating (Amps) | Voltage Rating - AC | Features | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Switch Function | Illumination | Bushing Thread | Actuator Length [x] | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | 30 V | DP3T | 3 A 6 A | 125 V | Jumper needed to achieve triple throw | PC Pin | 85 °C | -30 ░C | 6.5 mm | On-On-On | Non-Illuminated | 1/4-40 | 12.28 mm | Panel Mount | Standard Round |
