ASDTDV Series

Catalog

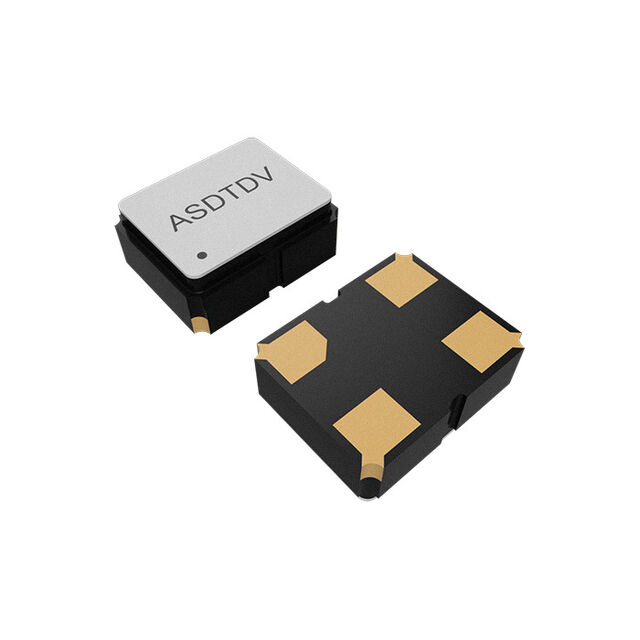

STANDARD CLOCK OSCILLATORS 25.000 MHZ CMOS SMD

Part	Current - Supply (Disable) (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Voltage - Supply	Frequency Stability	Current - Supply (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Base Resonator [custom]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Package / Case	Type	Function	Output
Abracon LLC ASDTDV-25.000MHZ-XY-T	10 µA	Surface Mount	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	25 MHz	1.8 V 2.5 V 3.3 V	10 ppm	5.5 mA	0.039 in	1 mm	Crystal	2	2.5	4-SMD	4-SMD No Lead	XO (Standard)	Enable/Disable	CMOS
Abracon LLC ASDTDV-25.000MHZ-LY-T	10 µA	Surface Mount	-40 C	85 °C	2.5 mm	0.079 in	0.098 in	2 mm	25 MHz	1.8 V 2.5 V 3.3 V	10 ppm	5.5 mA	0.039 in	1 mm	Crystal	2	2.5	4-SMD	4-SMD No Lead	XO (Standard)	Enable/Disable	CMOS
Abracon LLC ASDTDV-27.000MHZ-XY-T		Surface Mount	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	27 MHz	1.8 V 2.5 V 3.3 V	10 ppm	5.5 mA	0.039 in	1 mm	Crystal	2	2.5	4-SMD	4-SMD No Lead	XO (Standard)	Enable/Disable	CMOS
Abracon LLC ASDTDV-33.333MHZ-XY-T	10 µA	Surface Mount	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	33.333 MHz	1.8 V 2.5 V 3.3 V	10 ppm	6 mA	0.039 in	1 mm	Crystal	2	2.5	4-SMD	4-SMD No Lead	XO (Standard)	Enable/Disable	CMOS
