RJE4W48 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

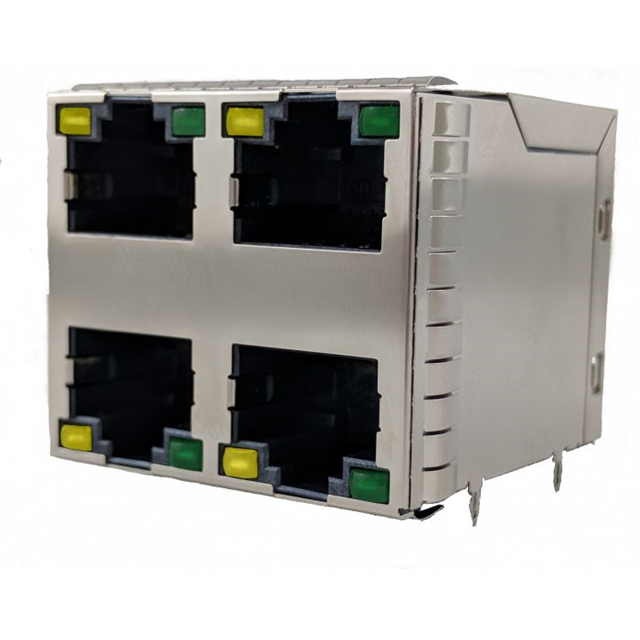

8P8C, RA, CAT5E, STACKED 2X2, WI
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Number of Positions/Contacts | Number of Ports | LED Color | Tab Direction | Number of Rows [custom] | Contact Material | Connector Type | Ratings | Orientation | Contact Finish | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | -55 C | 85 °C | Thermoplastic | 50 µin | 1.27 µm | Solder | Through Hole | 8p8c (RJ45 Ethernet) | 4 | Green Yellow | Up and Down | 2 | Phosphor Bronze | Jack | Cat5e | 90 ° | Gold | EMI Finger Shielded |
