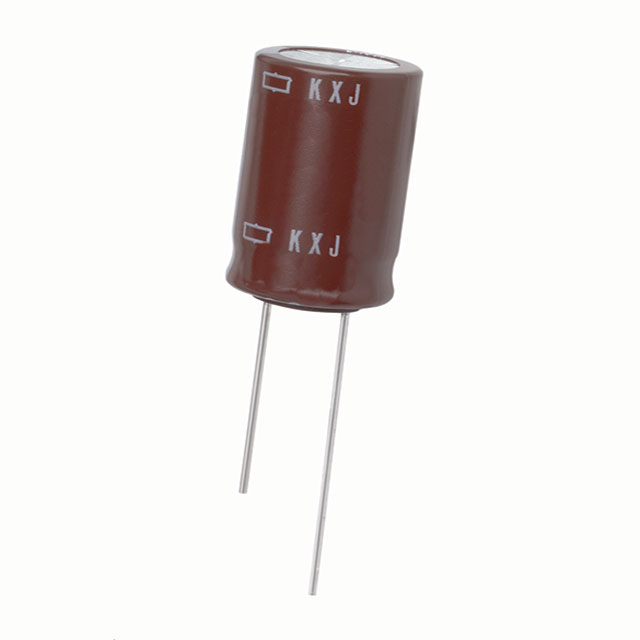

KXJ Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 420VDC 120UF TOL 20% 18X45MM AEC-Q200

Part	Ratings	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Lead Spacing	Lead Spacing	Voltage - Rated	Ripple Current @ High Frequency	Lifetime @ Temp.	Capacitance	Mounting Type	Tolerance	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [z]
Chemi-Con EKXJ421ELL121MM45S	AEC-Q200	945 mA	0.709 in	18 mm	-40 C	105 ░C	Automotive	Can Radial	1.831 in	46.5 mm	0.295 in	7.5 mm	420 V	2.12625 A	12000 Hrs	120 µF	Through Hole	20 %	Polar
Chemi-Con EKXJ251ELL820MK25S	AEC-Q200	565 mA	0.492 in	12.5 mm	-40 C	105 ░C	Automotive	Can Radial	1.043 in		0.197 "	5 mm	250 V	1.4125 A	12000 Hrs	0.082 mF	Through Hole	20 %	Polar	26.5 mm

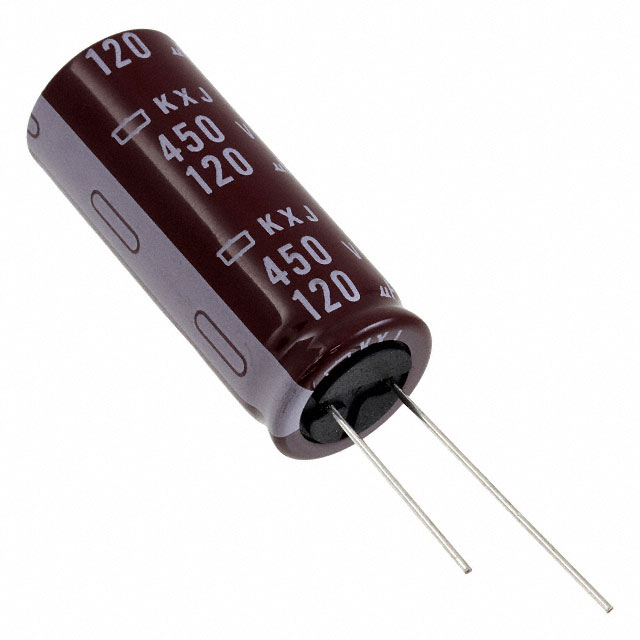

Chemi-Con EKXJ451ELL121MM45S	AEC-Q200	945 mA	0.709 in	18 mm	-40 C	105 ░C	Automotive	Can Radial	1.831 in	46.5 mm	0.295 in	7.5 mm	450 V	2.12625 A	12000 Hrs	120 µF	Through Hole	20 %	Polar
Chemi-Con EKXJ221ELL151MK35S	AEC-Q200	860 mA	0.492 in	12.5 mm	-40 C	105 ░C	Automotive	Can Radial	1.437 "		0.197 "	5 mm	220 V	1.935 A	12000 Hrs	150 µF	Through Hole	20 %	Polar	36.5 mm
Chemi-Con EKXJ351ELL121MU40S	AEC-Q200		0.571 in	14.5 mm	-40 C	105 ░C	Automotive	Can Radial		41.5 mm	0.295 in	7.5 mm	350 V	1.87875 A	12000 Hrs	120 µF	Through Hole	20 %	Polar		1.634 in
Chemi-Con EKXJ421ELL270MK25S	AEC-Q200	340 mA	0.492 in	12.5 mm	-40 C	105 ░C	Automotive	Can Radial	1.043 in		0.197 "	5 mm	420 V	850 mA	12000 Hrs	27 µF	Through Hole	20 %	Polar	26.5 mm
Chemi-Con EKXJ451ELL270MJ45S	AEC-Q200	305 mA	0.394 in	10 mm	-40 C	105 ░C	Automotive	Can Radial	1.831 in	46.5 mm	0.197 "	5 mm	450 V	762.5 mA	12000 Hrs	27 µF	Through Hole	20 %	Polar
Chemi-Con EKXJ351ELL820MUN3S	AEC-Q200	645 mA	0.571 in	14.5 mm	-40 C	105 ░C	Automotive	Can Radial			0.295 in	7.5 mm	350 V	1.6125 A	12000 Hrs	0.082 mF	Through Hole	20 %	Polar	1.299 in		33 mm
Chemi-Con EKXJ501ELL150MK25S	AEC-Q200	165 mA	0.492 in	12.5 mm	-25 °C	105 ░C	Automotive	Can Radial	1.043 in		0.197 "	5 mm	500 V	427.35 mA	10000 Hrs	15 µF	Through Hole	20 %	Polar	26.5 mm
Chemi-Con EKXJ421ELL121ML50S	AEC-Q200	935 mA	0.63 in	16 mm	-40 C	105 ░C	Automotive	Can Radial	2.028 in		0.295 in	7.5 mm	420 V	2.10375 A	12000 Hrs	120 µF	Through Hole	20 %	Polar	51.5 mm
