ODB6015 Series
Manufacturer: ORION FANS
Beta
⌘K

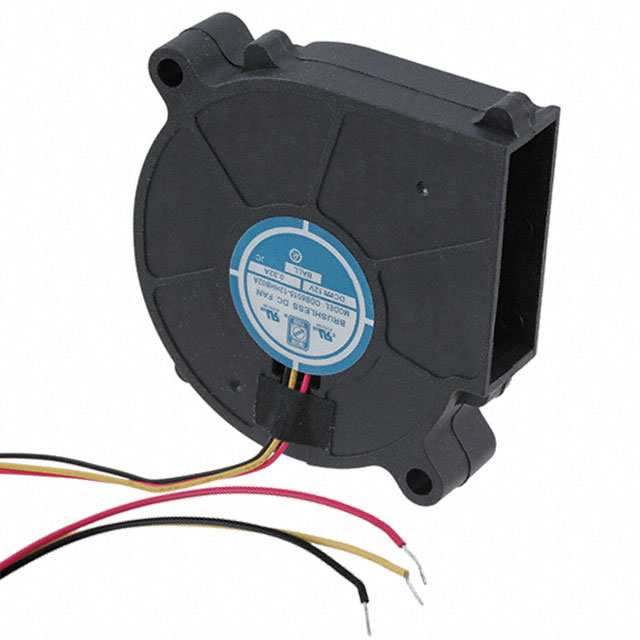

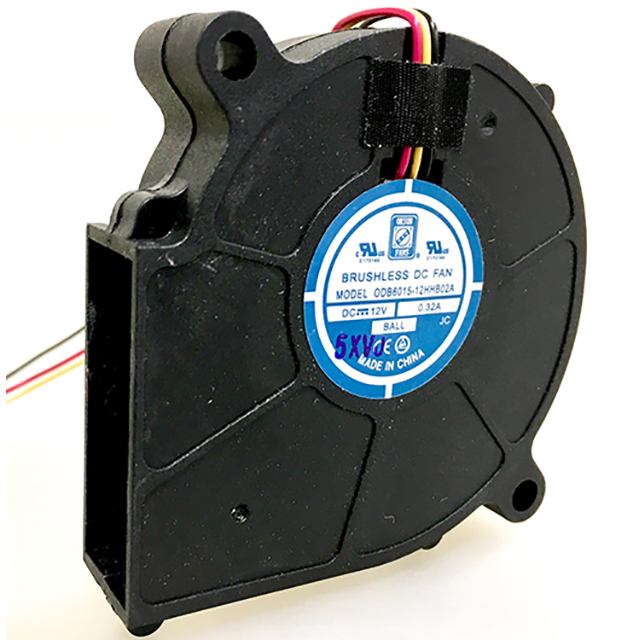

FAN BLOWER 57.25X15.2MM 12VDC
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Lifetime @ Temp. | Voltage - Rated | Features | Bearing Type | Operating Temperature [Max] | Operating Temperature [Min] | Width [y] | RPM | Air Flow | Air Flow | Power (Watts) | Fan Type | Noise | Approval Agency | Termination | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) | 7 V | 13.2 VDC | 0.2 A | 70000 Hrs | 12 VDC | Auto Restart Locked Rotor Sensor | Ball | 70 °C | -10 °C | 15.2 mm | 5000 RPM | 0.21 mł/min | 7.5 CFM | 3.84 W | Blower | 44 dB(A) | cURus TUV | 3 Wire Leads | 57.25 mm | 50.37 mm | Rectangular/Rounded | ||
 ORION FANS | Polybutylene Terephthalate (PBT) | 7 V | 13.2 VDC | 0.2 A | 70000 Hrs | 12 VDC | Locked Rotor Sensor | Ball | 70 °C | -10 °C | 15.2 mm | 5000 RPM | 0.207 m³/min | 7.4 CFM | 3.84 W | Blower | 44 dB(A) | cURus TUV | 3 Wire Leads | 57.25 mm | 50.37 mm | Rectangular/Rounded | 0.077 lb | 34.93 g |
