CS-4-14 Series

Catalog

ROTARY SWITCH, SMD, 4 POSITION, 1 POLE, 45 °, 100 MA, 16 V, CS-4 SERIES

Part	Electrical Life	Body Material	Length [x]	Length [x]	Circuit	Termination Style	Pitch	Pitch	Mounting Type	Height Above Board	Height Above Board [z]	Contact Material	Actuator Type	Contact Finish	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Number of Positions	Voltage Rating
Nidec Components Corporation CS-4-14NA	200 Cycles	Liquid Crystal Polymer (LCP)	5 mm	0.197 in	SP4T	J Lead	0.051 in	1.3 mm	Surface Mount	2.3 mm	0.091 "	Copper Alloy	Rotary for Tool	Gold	100 mA	-25 °C	70 °C	Flush Recessed	4	16 VDC
Nidec Components Corporation CS-4-14NB	200 Cycles	Liquid Crystal Polymer (LCP)	5 mm	0.197 in	SP4T	Gull Wing	0.051 in	1.3 mm	Surface Mount	2.3 mm	0.091 "	Copper Alloy	Rotary for Tool	Gold	100 mA	-25 °C	70 °C	Flush Recessed	4	16 VDC

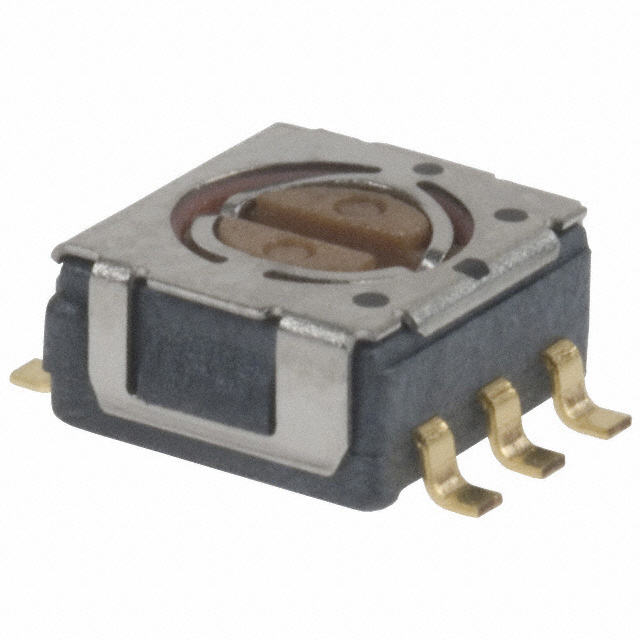

Nidec Components Corporation CS-4-14NTB	200 Cycles	Liquid Crystal Polymer (LCP)	5 mm	0.197 in	SP4T	Gull Wing	0.051 in	1.3 mm	Surface Mount	2.3 mm	0.091 "	Copper Alloy	Rotary for Tool	Gold	100 mA	-25 °C	70 °C	Flush Recessed	4	16 VDC

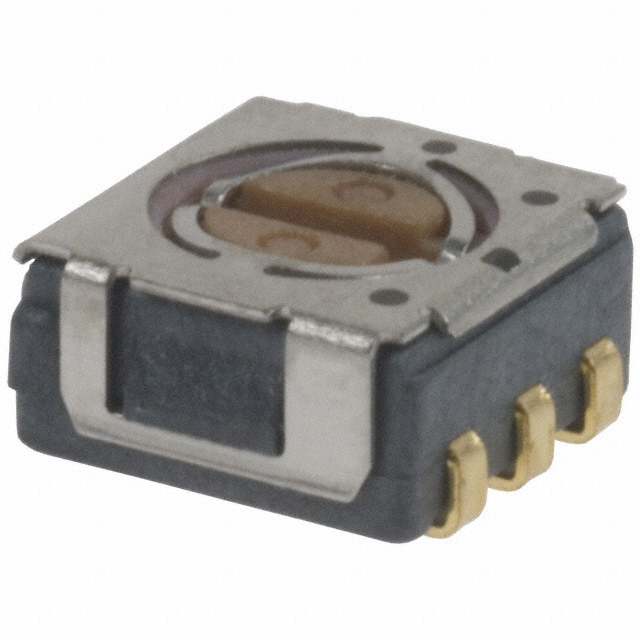

Nidec Components Corporation CS-4-14NTA	200 Cycles	Liquid Crystal Polymer (LCP)	5 mm	0.197 in	SP4T	J Lead	0.051 in	1.3 mm	Surface Mount	2.3 mm	0.091 "	Copper Alloy	Rotary for Tool	Gold	100 mA	-25 °C	70 °C	Flush Recessed	4	16 VDC
