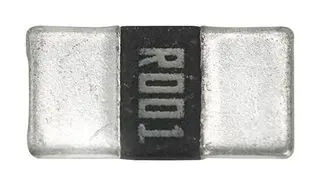

MSMA Series
Current Sense Resistors - SMD MSMA, 2512 SIZE, 2 Watt, 400 mohm, 50 TCR NiCu Metal AEC-Q
Manufacturer: Eaton - Electronics Division
Catalog
Current Sense Resistors - SMD MSMA, 2512 SIZE, 2 Watt, 400 mohm, 50 TCR NiCu Metal AEC-Q
Beta
⌘K
Current Sense Resistors - SMD MSMA, 2512 SIZE, 2 Watt, 400 mohm, 50 TCR NiCu Metal AEC-Q
Current Sense Resistors - SMD MSMA, 2512 SIZE, 2 Watt, 400 mohm, 50 TCR NiCu Metal AEC-Q
Current Sense Resistors - SMD MSMA, 2512 SIZE, 2 Watt, 400 mohm, 50 TCR NiCu Metal AEC-Q
| Part | Ratings | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Features | Power (Watts) | Number of Terminations [custom] | Package / Case | Tolerance | Supplier Device Package | Composition | Temperature Coefficient | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Resistance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

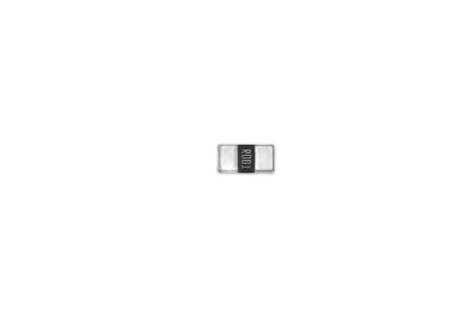

 Eaton - Electronics Division | AEC-Q200 | 2512 2512 (6432 Metric) | 170 °C | -55 C | Automotive AEC-Q200 Current Sense Moisture Resistant | 2 W | 2 | 6332 Metric | 1 % | 2512 | Metal Element | 50 ppm/░C | 0.043 " | 1.1 mm | 0.12 Ohms | ||||
Eaton - Electronics Division | AEC-Q200 | 2512 (6432 Metric) | 170 °C | -55 C | Automotive AEC-Q200 Current Sense Moisture Resistant | 3 W | 2 | 1 % | 2512 | Metal Element | 50 ppm/░C | 0.043 " | 1.1 mm | 57 mOhms | |||||
Eaton - Electronics Division | AEC-Q200 | 1225 Wide 2512 (6432 Metric) | 170 °C | -55 C | Automotive AEC-Q200 Current Sense Moisture Resistant | 3 W | 2 | 1 % | 1225 | Metal Element | 50 ppm/░C | 0.045 in | 1.15 mm | 7 mOhms | 6.4 mm | 0.252 in | 0.126 in | 3.2 mm | |
 Eaton - Electronics Division | AEC-Q200 | 2512 2512 (6432 Metric) | 170 °C | -55 C | Automotive AEC-Q200 Current Sense Moisture Resistant | 2 W | 2 | 6332 Metric | 1 % | 2512 | Metal Element | 50 ppm/░C | 0.043 " | 1.1 mm | 0.4 Ohms |
