13180-7S Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

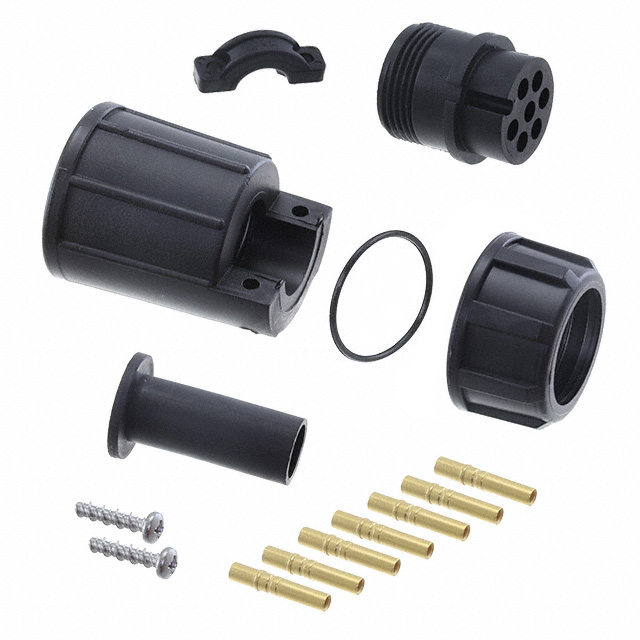

CONN PLUG FMALE 7POS GOLD CRIMP
| Part | Number of Positions | Contact Finish - Mating | Fastening Type | Termination | Contact Material | Shielding | Features | Ingress Protection | Orientation | Connector Type | Primary Material | Voltage Rating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Color | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 7 | Gold | Bayonet Lock | Crimp | Brass | Unshielded | Backshell Cable Clamp | Weathertight | Keyed | Plug Female Sockets | Plastic | 600 V | 5.33 mm | 0.25 in | 0.21 in | 6.35 mm | Free Hanging (In-Line) | 115 °C | -40 C | Nylon Polyamide (PA) | Black | |
SWITCHCRAFT/CONXALL | 7 | Gold | Bayonet Lock | Crimp | Brass | Unshielded | Backshell Cable Clamp | Weathertight | Keyed | Plug Female Sockets | Plastic | 600 V | 7.87 mm | 0.38 in | 0.31 " | Free Hanging (In-Line) | 115 °C | -40 C | Nylon Polyamide (PA) | Black | 9.65 mm | |
SWITCHCRAFT/CONXALL | 7 | Gold | Bayonet Lock | Crimp | Brass | Unshielded | Backshell Cable Clamp | Weathertight | Keyed | Plug Female Sockets | Plastic | 600 V | 6.6 mm | 0.3 " | 0.26 " | Free Hanging (In-Line) | 115 °C | -40 C | Nylon Polyamide (PA) | Black | 7.62 mm |
