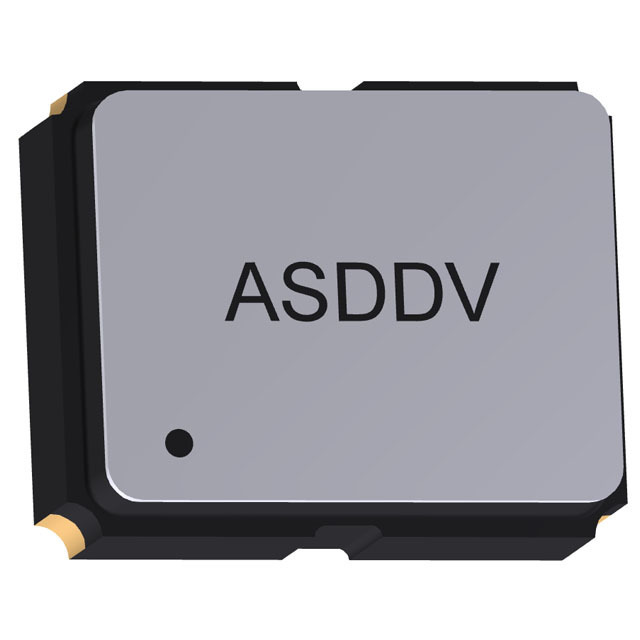

ASDDV Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 2520 4-SMD 48MHZ +/-50PPM -40°C ~ 85°C CMOS 1.6V ~ 3.63V

Part	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Current - Supply (Max) [Max]	Function	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Frequency Stability	Type	Current - Supply (Disable) (Max) [Max]
Abracon LLC ASDDV-48.000MHZ-LC-T	4-SMD No Lead	2	2.5	4-SMD	5 mA	Enable/Disable	85 °C	-40 C	Crystal	3.6 V	1.6 V	48 MHz	HCMOS LVCMOS	0.95 mm	0.037 in	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	50 ppm	XO (Standard)
Abracon LLC ASDDV-1.8432MHz-LC-T3	4-SMD No Lead	2	2.5	4-SMD	2 mA	Enable/Disable	85 °C	-40 C	Crystal	3.3 V	1.8 V	1.8432 MHz	HCMOS LVCMOS	0.95 mm	0.037 in	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	50 ppm	XO (Standard)	10 µA
Abracon LLC ASDDV-19.200MHz-LC-T	4-SMD No Lead	2	2.5	4-SMD	3 mA	Enable/Disable	85 °C	-40 C	Crystal	3.3 V	1.8 V	19.2 MHz	HCMOS LVCMOS	0.95 mm	0.037 in	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	50 ppm	XO (Standard)
Abracon LLC ASDDV-50.000MHZ-LR-T3	4-SMD No Lead	2	2.5	4-SMD	6 mA	Enable/Disable	85 °C	-40 C	Crystal	3.3 V	1.8 V	50 MHz	HCMOS LVCMOS	0.95 mm	0.037 in	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	25 ppm	XO (Standard)	10 µA
