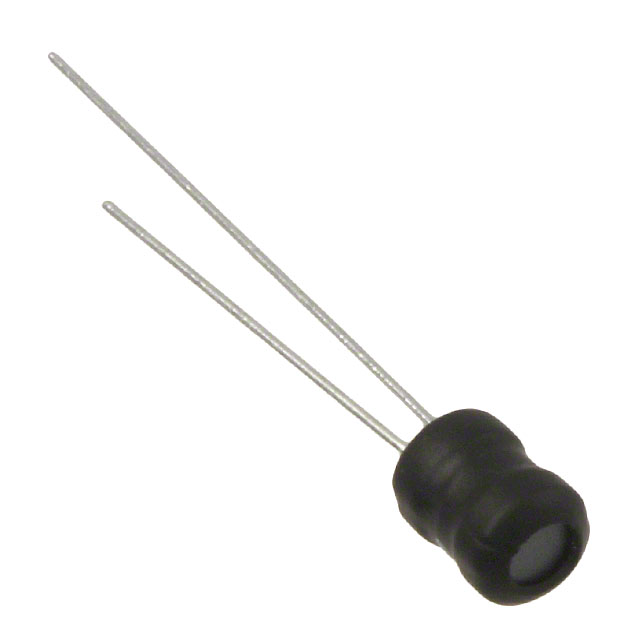

RLB0608 Series

Catalog

INDUCTOR, 1000UH, 0.1A, 10%, RADIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Tolerance	Inductance Frequency - Test	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inductance	Q @ Freq	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Shielding	Frequency - Self Resonant	DC Resistance (DCR)
Bourns Inc. RLB0608-102KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	252 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	1 mH	55 252 kHz	11.5 Ohm	100 mA	Radial Vertical Cylinder	Unshielded	1.8 MHz
Bourns Inc. RLB0608-390KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	2.52 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	39 µH			390 mA	Radial Vertical Cylinder	Unshielded	7.5 MHz
Bourns Inc. RLB0608-222KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	252 kHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	2.2 mH	50 252 kHz	20 Ohm	85 mA	Radial Vertical Cylinder	Unshielded	1 MHz
Bourns Inc. RLB0608-3R3ML	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	20 %	7.96 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	3.3 µH	7.96 MHz 60	300 mOhm	750 mA	Radial Vertical Cylinder	Unshielded	50 MHz
Bourns Inc. RLB0608-680KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	2.52 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	68 µH		1.3 Ohm	0.34 A	Radial Vertical Cylinder	Unshielded	6 MHz

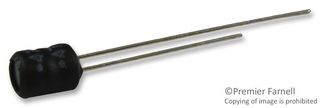

Bourns Inc. RLB0608-471KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	0.796 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	470 µH	55 796 kHz		140 mA	Radial Vertical Cylinder	Unshielded	2.8 MHz	6.5 Ohm
Bourns Inc. RLB0608-5R6KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	7.96 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	5.6 µH	7.96 MHz 60	350 mOhm	0.64 A	Radial Vertical Cylinder	Unshielded	35 MHz
Bourns Inc. RLB0608-1R8ML	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	20 %	7.96 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	1.8 µH	7.96 MHz 60	220 mOhm	880 mA	Radial Vertical Cylinder	Unshielded
Bourns Inc. RLB0608-821KL	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	10 %	0.796 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	820 µH	55 796 kHz		120 mA	Radial Vertical Cylinder	Unshielded	2 MHz	9.6 Ohm
Bourns Inc. RLB0608-3R9ML	0.197 in	5 mm	Through Hole	0.295 in	7.5 mm	20 %	7.96 MHz	Ferrite	125 °C	-40 C	Drum Core Wirewound	3.9 µH	7.96 MHz 60	300 mOhm	0.72 A	Radial Vertical Cylinder	Unshielded	45 MHz
