1010-3 Series

Catalog

CONN PC PIN SQUARE 0.025 GOLD

Part	Contact Finish	Mounting Type	Length - Overall	Length - Overall	Flange Diameter [diameter]	Flange Diameter [diameter]	Insulation	Length - Above Flange	Length - Above Flange	Terminal Style	Pin Size - Above Flange	Pin Size - Above Flange	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Terminal Type	Termination

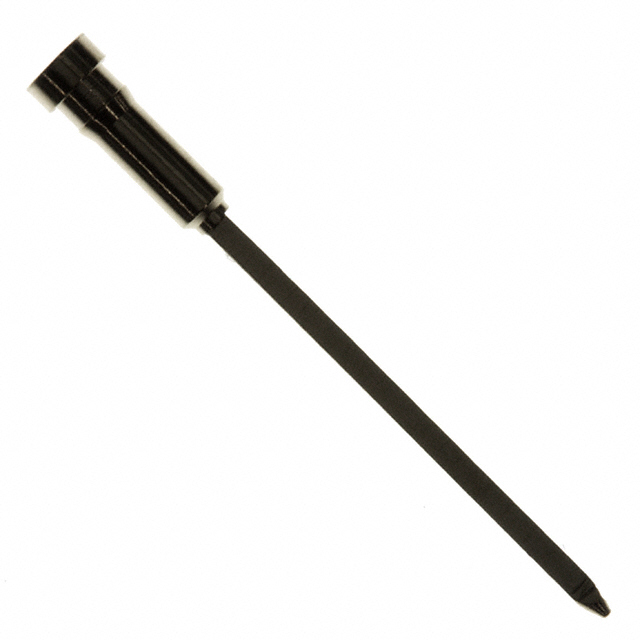

Mill-Max Manufacturing Corp. 1010-3-05-15-00-00-01-0	Gold	Through Hole	0.693 in	17.6 mm	0.072 "	1.83 mm	Non-Insulated	16.84 mm	0.663 in	Single End	0.025 in	0.64 mm	Brass Alloy	1.45 mm	0.057 in	0.25 Ám	10 Áin	PC Pin	Press-Fit Wire Wrap
Mill-Max Manufacturing Corp. 1010-3-05-01-00-00-01-0	Tin-Lead	Through Hole	0.693 in	17.6 mm	0.072 "	1.83 mm	Non-Insulated	16.84 mm	0.663 in	Single End	0.025 in	0.64 mm	Brass Alloy	1.45 mm	0.057 in	5.08 Ám	200 Áin	PC Pin	Press-Fit Wire Wrap

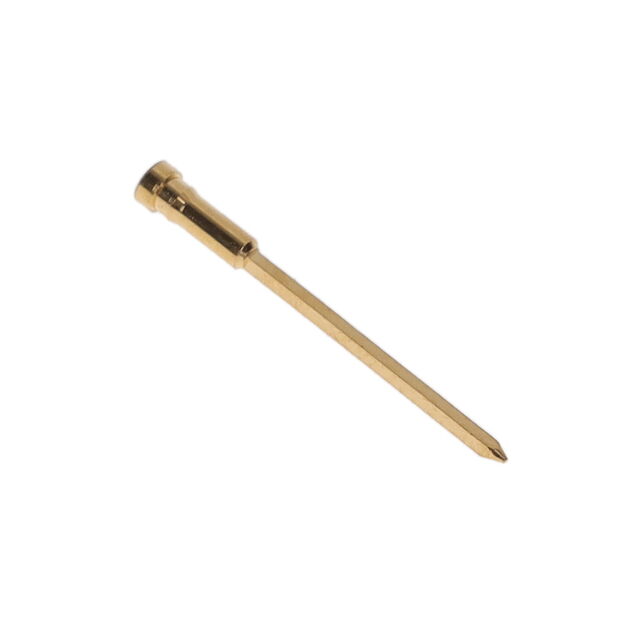

Mill-Max Manufacturing Corp. 1010-3-05-21-00-00-01-0	Gold	Through Hole	0.693 in	17.6 mm	0.072 "	1.83 mm	Non-Insulated	16.84 mm	0.663 in	Single End	0.025 in	0.64 mm	Brass Alloy	1.45 mm	0.057 in	0.51 µm	20 µin	PC Pin	Press-Fit Wire Wrap
