R4-40 Series

Catalog

MACHINE SCREW PAN PHILLIPS 4-40

Part	Head Diameter	Head Diameter	Type	Length - Overall [x]	Length - Overall [x]	Head Height	Head Height	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Features	Material	Thread Size	Drive Type	Screw Head Type	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Overall	Length - Below Head	Length - Below Head [x]

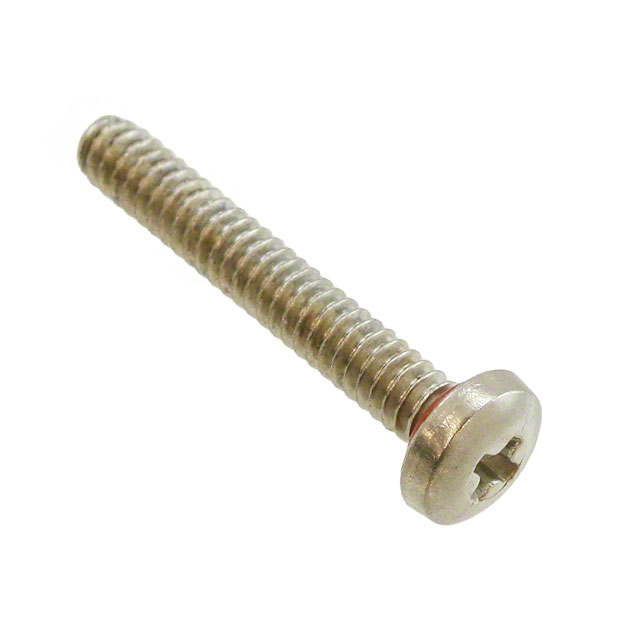

APM Hexseal R4-40X3/4 2701	0.238 in	6.05 mm	Machine Screw	0.83 in	21.08 mm	0.08 "	2.03 mm	0.75 in	19.05 mm	0.75 in	Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head

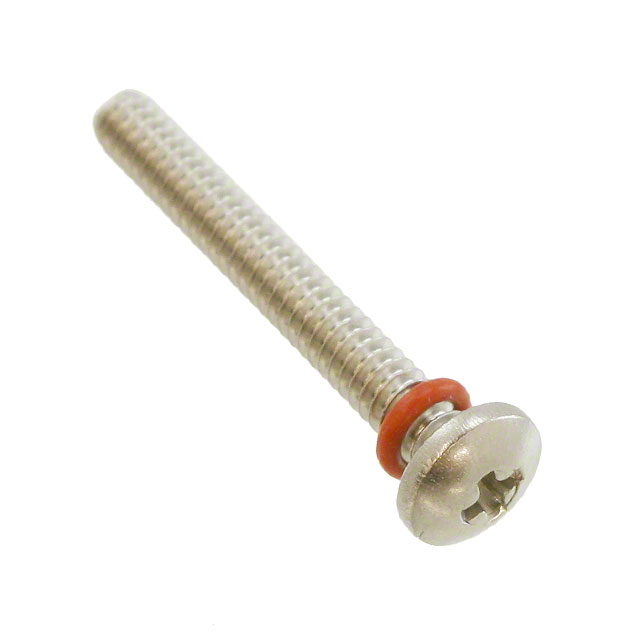

APM Hexseal R4-40X7/8 2701	0.238 in	6.05 mm	Machine Screw			0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.875 "	0.875 "	22.23 mm	24.26 mm	0.955 in

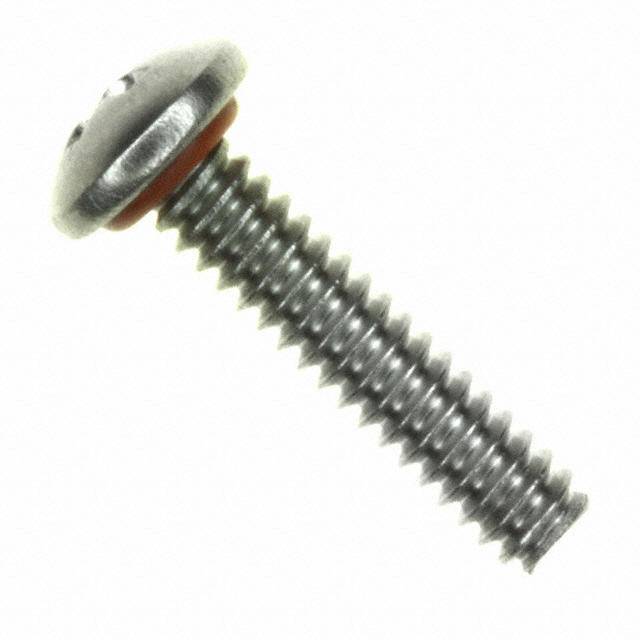

APM Hexseal R4-40X1/2 2701	0.238 in	6.05 mm	Machine Screw	0.58 "	14.73 mm	0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.5 in	0.5 in	12.7 mm

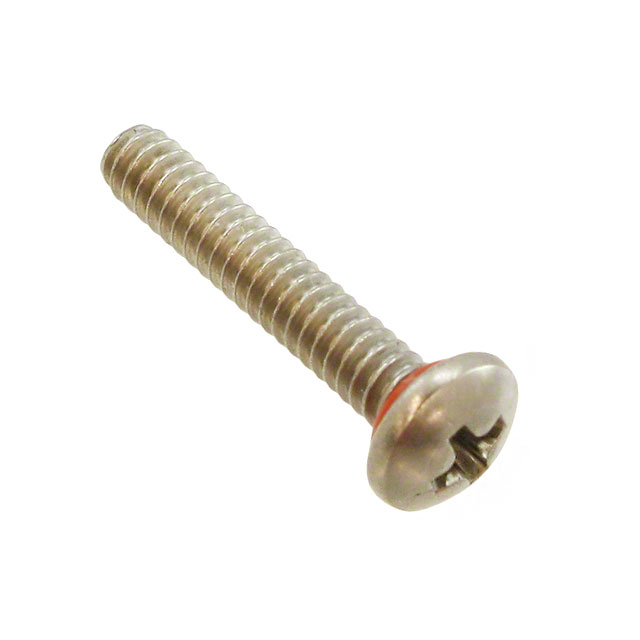

APM Hexseal R4-40X5/8 2701	0.238 in	6.05 mm	Machine Screw	0.705 in	17.91 mm	0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.625 in	15.88 mm	0.625 in

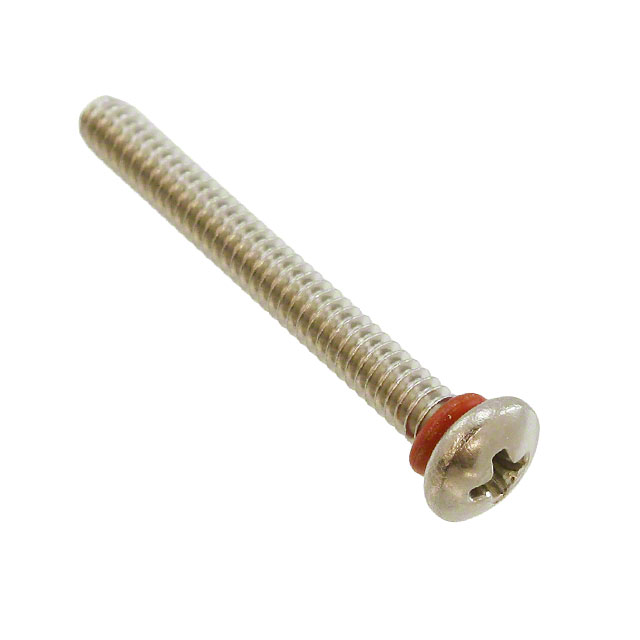

APM Hexseal R4-40X1 2701	0.238 in	6.05 mm	Machine Screw	1.08 in	27.43 mm	0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head			25.4 mm			1 in
APM Hexseal R4-40X9/16 2701	0.238 in	6.05 mm	Machine Screw	0.643 in	16.33 mm	0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.563 in	0.5625 in	14.3 mm

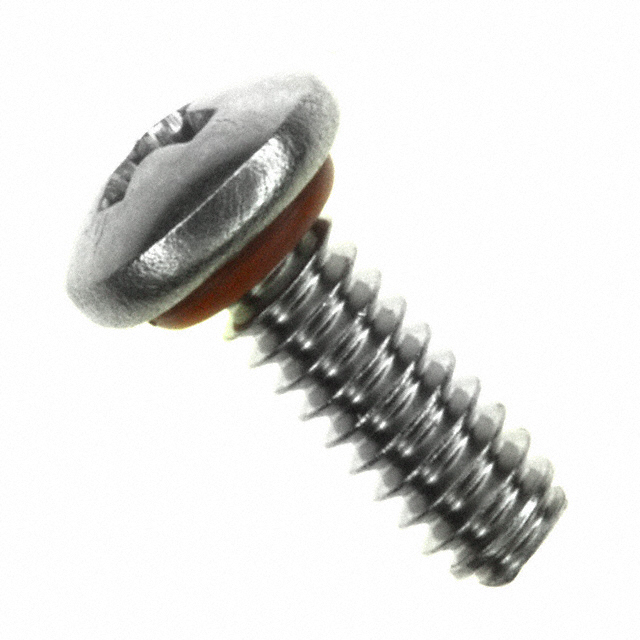

APM Hexseal R4-40X5/16 2701	0.238 in	6.05 mm	Machine Screw	0.393 in		0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.313 in	0.3125 in	7.95 mm	9.98 mm

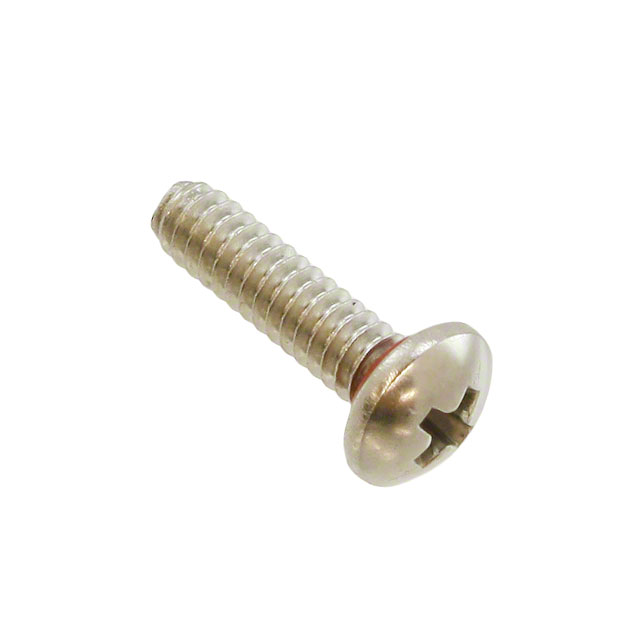

APM Hexseal R4-40X7/16 2701	0.238 in	6.05 mm	Machine Screw			0.08 "	2.03 mm	0.438 "			Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head			0.4375 "	13.16 mm	0.518 in
APM Hexseal R4-40X3/8-5701	0.238 in	6.05 mm	Machine Screw			0.08 "	2.03 mm				Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head	0.375 in	0.375 in	9.53 mm	11.56 mm	0.455 in

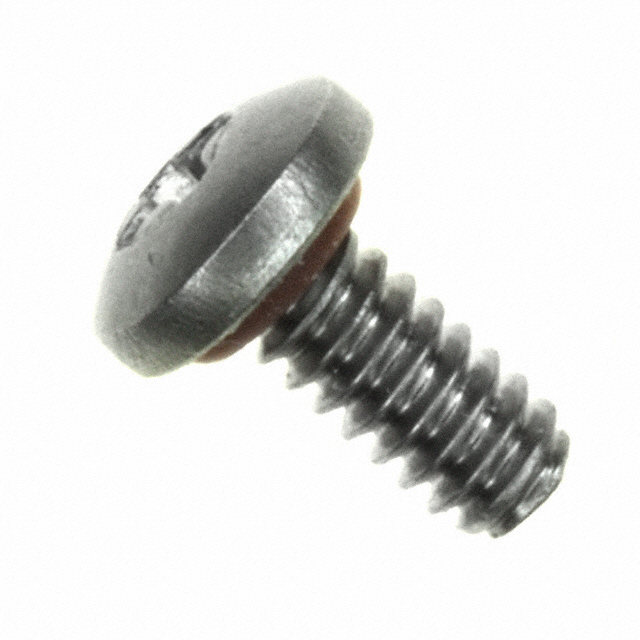

APM Hexseal R4-40X1/4 2701	0.238 in	6.05 mm	Machine Screw			0.08 "	2.03 mm	0.25 in	6.35 mm		Self Sealing	Stainless Steel	#4-40	Phillips	Pan Head				8.38 mm	0.33 in		1/4
