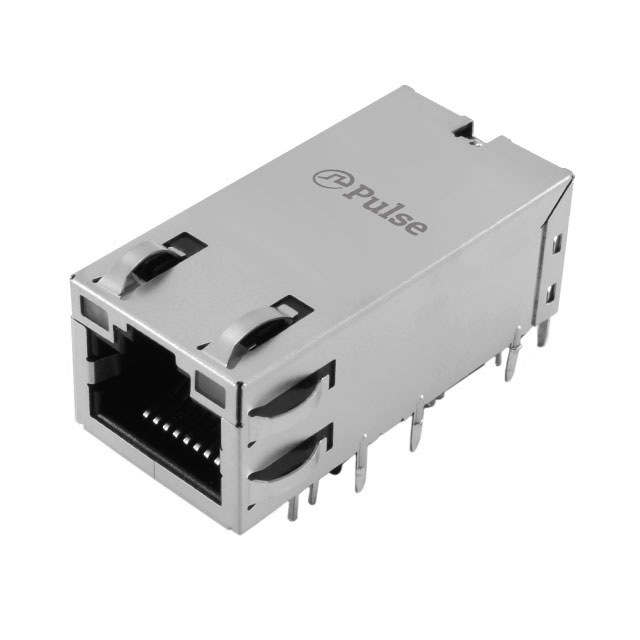

JT7 Series
Manufacturer: Pulse Electronics
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS RJ45 4P 10BASE-T THT CONNECTOR
| Part | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Contact Material | Shielding | Number of Cores per Jack | Applications | Features | Connector Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Termination | Contact Finish | Tab Direction | Number of Rows | Orientation | LED Color | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Copper Alloy | 50 µin | 1.27 µm | Thermoplastic | Phosphor Bronze | EMI Finger Shielded | 8 | 10G Base-T AutoMDIX | Board Guide | RJ45 | Through Hole | 70 °C | 0 °C | 1 | Solder | Gold | Up | 1 | 90 ° | Green Yellow - Green | 13.33 mm | 0.525 in |
