151244 Series

Catalog

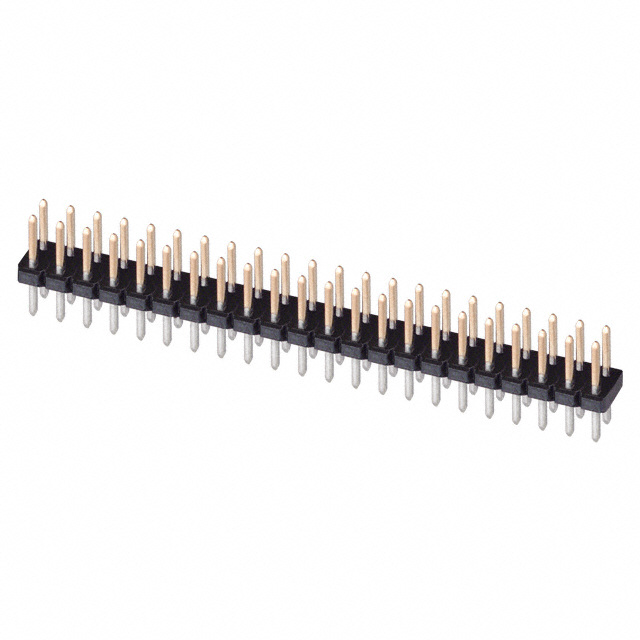

CONN HEADER VERT 44POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Style	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Type	Shrouding	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type
3M Electronic Specialty 151244-8422-RB	200 µin	5.08 µm	44	Black	Board to Board Cable	0.118 in	3 mm	-55 C	105 ░C	Push-Pull	0.06 in	1.52 mm	Gold	3.86 mm	0.152 in	Tin	Male Pin	Unshrouded	Square	2 mm	0.079 in	2	0.329 in	8.36 mm	Header	0.76 Ám	30 Áin	Copper Alloy	Solder	UL94 V-0	0.079 "	2 mm	All	Through Hole
