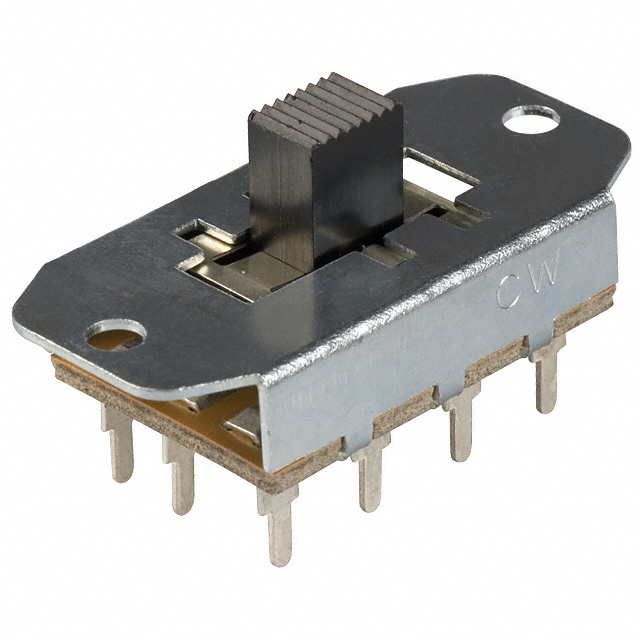

G-368S Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE 3P3T 3A 125V
| Part | Actuator Material | Electrical Life | Switch Travel | Mechanical Life | Mounting Type | Current Rating (Amps) | Termination Style | Contact Finish | Contact Timing | Actuator Length [x] | Voltage Rating - AC | Circuit | Contact Material | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 6.25 mm | 10000 Steps | Panel Mount | 3 A 500 mA | PC Pin | Silver | Not Specified | 8.74 mm | 125 V | 3P3T | Copper | On-On-On | -10 °C | 104 °C | Standard | 125 VDC |
