060-P458 Series

Catalog

HAMMER UNION PRESSURE SENSORS

Part	Features	Output [Min]	Output [Max]	Applications	Pressure Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Operating Pressure	Operating Pressure	Accuracy	Output Type	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]

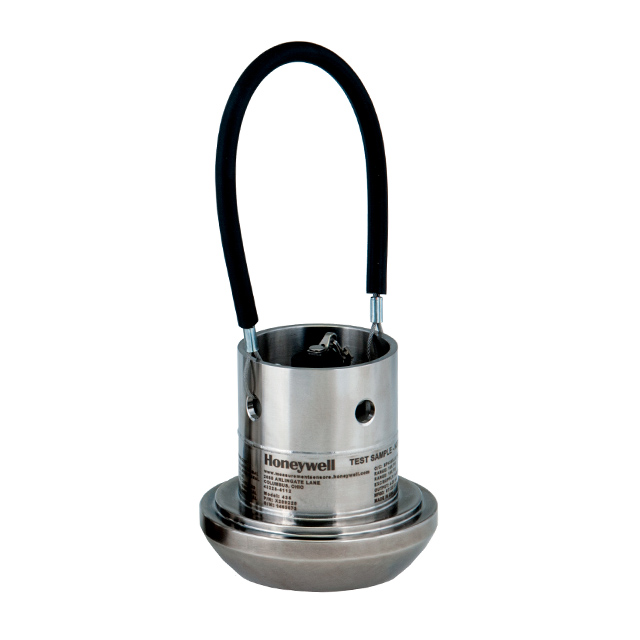

Honeywell Sensing and Productivity Solutions 060-P458-04	Temperature Compensated	4 mA	20 mA	Industrial Automation	Vented Gauge	Connector	9 V	28 V	Weco® 1502 Hammer Union	15000 PSI	103421.36 kPa	0.2 %	Analog Current	22500 PSI	155132.04 kPa	125 °C	-40 C	Male - Tube	2 in	51 mm
Honeywell Sensing and Productivity Solutions 060-P458-03	Temperature Compensated	4 mA	20 mA	Industrial Automation	Vented Gauge	Connector	9 V	28 V	Weco® 1502 Hammer Union	10000 PSI	68947.57 kPa	0.2 %	Analog Current	15000 PSI	103421.36 kPa	125 °C	-40 C	Male - Tube	2 in	51 mm

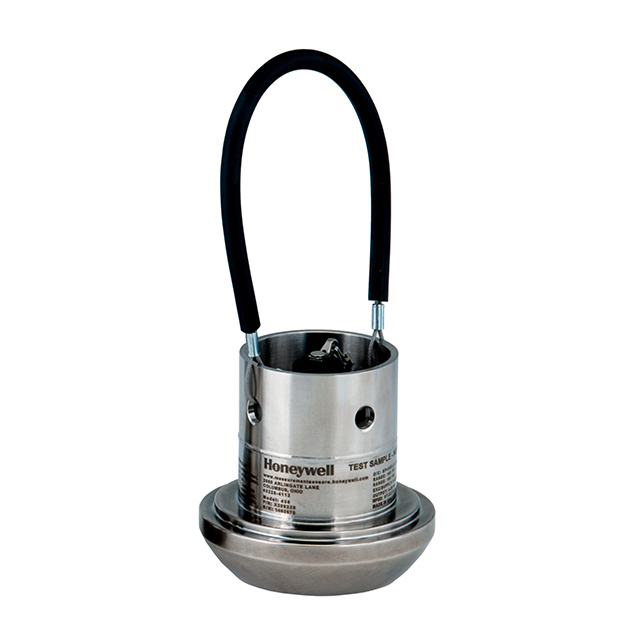

Honeywell Sensing and Productivity Solutions 060-P458-02	Temperature Compensated	4 mA	20 mA	Industrial Automation	Vented Gauge	Connector	9 V	28 V	Weco® 1502 Hammer Union	6000 PSI	41368.54 kPa	0.2 %	Analog Current			125 °C	-40 C	Male - Tube	2 in	51 mm	62052.82 kPa	9000 PSI
