RSB2A Series

Catalog

POWER RELAY, DPDT, 240 VAC, 8 A, RSB SERIES, SOCKET, AC

Part	Coil Resistance	Contact Material	Coil Voltage	Contact Rating (Current)	Operate Time	Mounting Type	Contact Form	Coil Current	Must Operate Voltage	Coil Type	Must Release Voltage	Release Time	Switching Voltage	Termination Style	Load - Max Switching	Approval Agency	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Features
SCHNEIDER ELECTRIC RSB2A080U7	33 kOhms	Silver Nickel (AgNi)	240 VAC/DC	8 A	20 ms	Socketable	DPDT (2 Form C)	7.3 mA	192 VAC	Non Latching	36 VAC	20 ms	250 VAC 300 VDC	Plug In	2000 VA 2240 W	CSA EAC UL	General Purpose	70 °C	-40 C
SCHNEIDER ELECTRIC RSB2A080JD	360 Ohms	Silver Nickel (AgNi)	12 VDC	8 A	20 ms	Socketable	DPDT (2 Form C)	33.3 mA		Non Latching	1.2 VDC	20 ms		Plug In	2400 VA	CSA EAC UL	General Purpose	85 °C	-40 C	300 VDC
SCHNEIDER ELECTRIC RSB2A080M7	33 kOhms	Silver Nickel (AgNi)	220 VAC/DC	8 A	20 ms	Socketable	DPDT (2 Form C)	6.7 mA	176 VAC	Non Latching	33 VAC	20 ms	250 VAC 300 VDC	Plug In	2000 VA 2240 W	CSA EAC UL	General Purpose	70 °C	-40 C
SCHNEIDER ELECTRIC RSB2A080F7S	10.2 kOhms	Silver Nickel (AgNi)	120 VAC	8 A	12 ms	Chassis Mount	DPDT (2 Form C)	11.8 mA	96 VAC	Non Latching	18 VAC	10 ms	300 VDC 400 VAC	Plug In	2400 W 3200 VA	CSA EAC UL	General Purpose	70 °C	-40 C
SCHNEIDER ELECTRIC RSB2A080P7	33 kOhms	Silver Nickel (AgNi)	230 VAC	8 A	20 ms	Socketable	DPDT (2 Form C)	7 mA	184 VAC	Non Latching	34.5 VAC	20 ms	250 VAC 300 VDC	Plug In	2000 VA 2240 W	CSA EAC UL	General Purpose	70 °C	-40 C

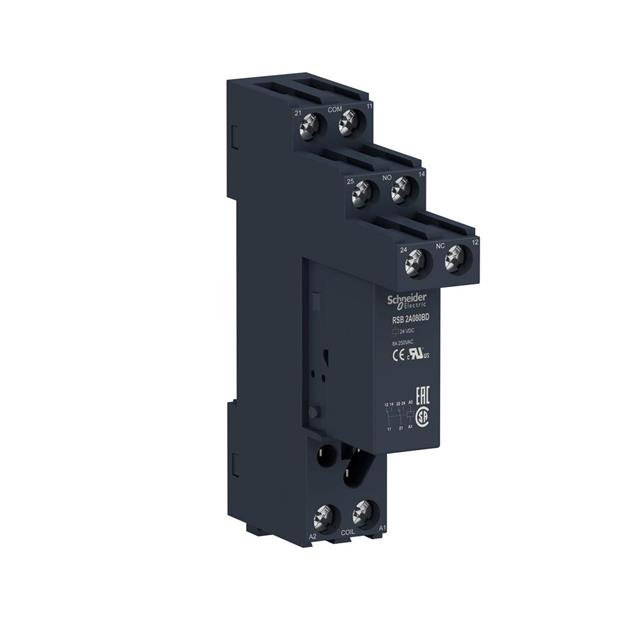

SCHNEIDER ELECTRIC RSB2A080BDS	1440 Ohms	Silver Nickel (AgNi)	24 VDC	8 A	9 ms	Socketable	DPDT (2 Form C)	16.7 mA		Non Latching	2.4 VDC	4 ms	300 VDC 400 VAC	Plug In	2400 W 3200 VA	CSA EAC UL	General Purpose	70 °C	-40 C
SCHNEIDER ELECTRIC RSB2A080F7	8.36 kOhms	Silver Nickel (AgNi)	120 VAC	8 A	20 ms	Socketable	DPDT (2 Form C)	14.4 mA		Non Latching	18 VAC	20 ms		Plug In	224 W 2000 VA	CSA EAC UL	General Purpose	70 °C	-40 C	28 VDC 250 VAC

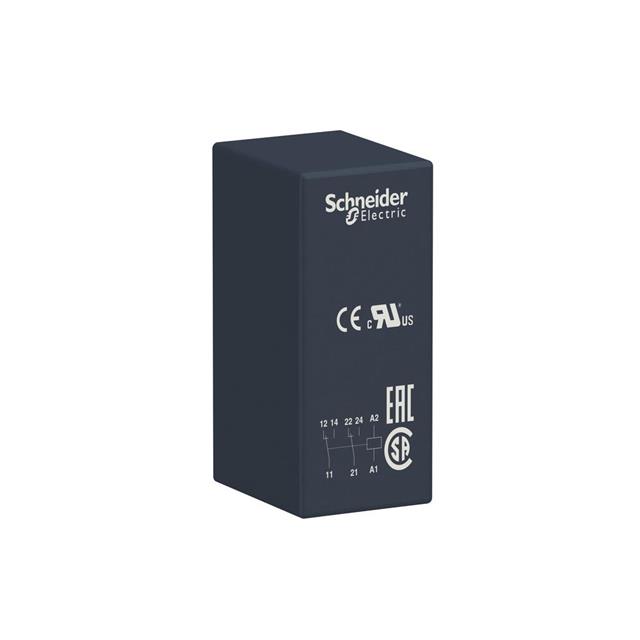

SCHNEIDER ELECTRIC RSB2A080E7	1.54 kOhms	Silver Nickel (AgNi)	48 VAC	8 A	20 ms	Socketable	DPDT (2 Form C)	31.2 mA	38.4 VAC	Non Latching	7.2 VAC	20 ms	250 VAC 300 VDC	Plug In	2000 VA 2240 W	CSA EAC UL	General Purpose	70 °C	-40 C

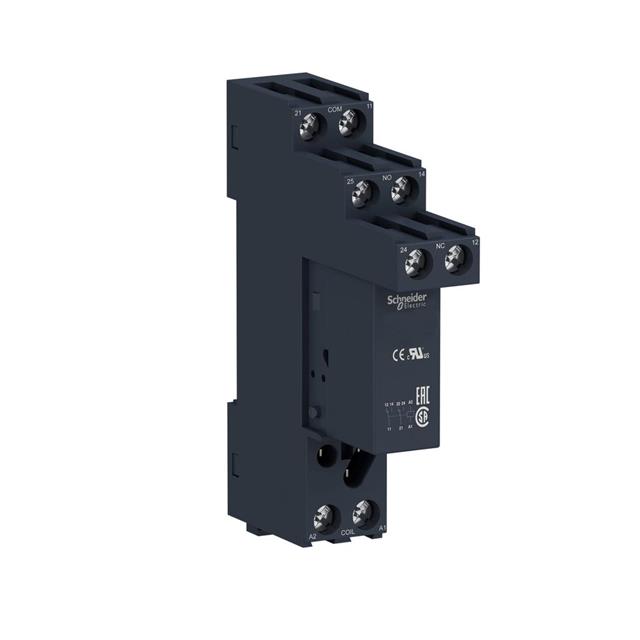

SCHNEIDER ELECTRIC RSB2A080B7S	400 Ohms	Silver Nickel (AgNi)	24 VAC	8 A	12 ms	DIN Rail	DPDT (2 Form C)	0.06 A	19.2 VAC	Non Latching	3.6 VAC	10 ms	300 VDC 400 VAC	Screw Terminal	2400 W 3200 VA	CSA EAC UL	General Purpose	70 °C	-40 C

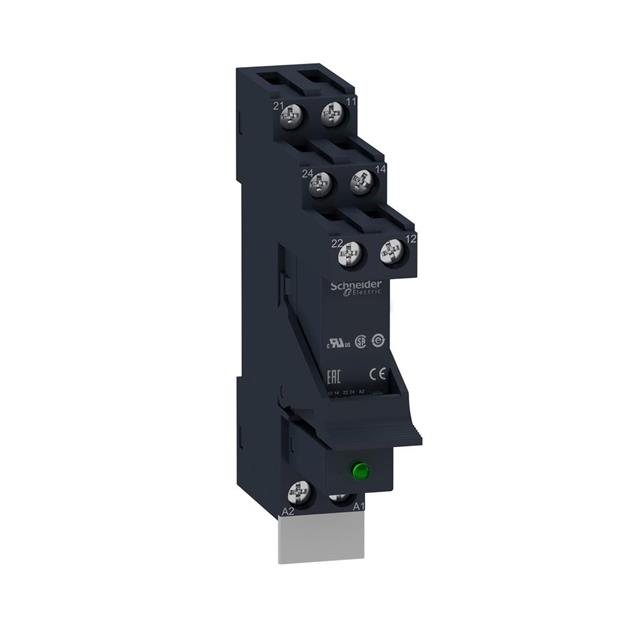

SCHNEIDER ELECTRIC RSB2A080BDPV	1440 Ohms	Silver Nickel (AgNi)	24 VDC	8 A	20 ms	DIN Rail	DPDT (2 Form C)	16.7 mA		Non Latching	2.4 VDC	20 ms		Screw Terminal	2400 VA	CSA EAC UL	General Purpose	85 °C	-40 C	300 VDC	Lighted Indicator
