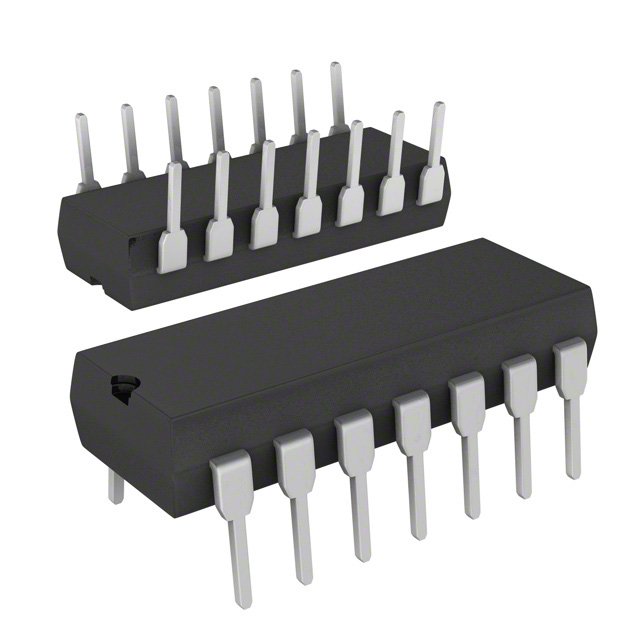

4114R Series

Catalog

RESISTOR NETWORK,THICK FILM,180KOHMS,100WV,2+/-% TOL,-100,100PPM-TC,7731-CASE ROHS COMPLIANT: YES

...

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Mounting Type	Number of Pins	Package / Case	Package / Case	Package / Case	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Number of Resistors	Resistor-Ratio-Drift	Resistance (Ohms)	Resistance (Ohms)	Tolerance	Resistance (Ohms) [custom]
Bourns Inc. 4114R-1-184LF	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Isolated	-55 C	125 °C	250 mW	7	50 ppm/°C	180 kOhms
Bourns Inc. 4114R-3-302/622	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Dual Terminator	-55 C	125 °C	125 mW	24	50 ppm/°C		3k 6.2k
Bourns Inc. 4114R-1-390LF	0.185 in	4.69 mm	14-DIP		Through Hole	14	14-DIP	0.3 in	7.62 mm	250 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Isolated	-55 C	125 °C	250 mW	7	50 ppm/°C	39 Ohms		±1Ohm
Bourns Inc. 4114R-1-161LF	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Isolated	-55 C	125 °C	250 mW	7	50 ppm/°C	160 Ohms
Bourns Inc. 4114R-2-470	0.185 in	4.69 mm	14-DIP		Through Hole	14	14-DIP	0.3 in	7.62 mm	250 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Bussed	-55 C	125 °C	125 mW	13	50 ppm/°C	47 Ohms		±1Ohm
Bourns Inc. 4114R-2-224	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Bussed	-55 C	125 °C	125 mW	13	50 ppm/°C	220 kOhms
Bourns Inc. 4114R-2-152	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Bussed	-55 C	125 °C	125 mW	13	50 ppm/°C				1.5 k
Bourns Inc. 4114R-1-364LF	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Isolated	-55 C	125 °C	250 mW	7	50 ppm/°C		360k
Bourns Inc. 4114R-2-272	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Bussed	-55 C	125 °C	125 mW	13	50 ppm/°C				2.7 k
Bourns Inc. 4114R-1-564	0.185 in	4.69 mm	14-DIP	2 %	Through Hole	14	14-DIP	0.3 in	7.62 mm	100 ppm/°C	0.3 "	19.43 mm	0.765 in	7.62 mm	Isolated	-55 C	125 °C	250 mW	7	50 ppm/°C	560 kOhms
