OSTTC05 Series

Catalog

TERM BLK 5POS SIDE ENTRY 5MM PCB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Housing Material	Screw Material - Plating	Contact Material - Plating	Clamp Material - Plating [custom]	Torque - Screw	Torque - Screw	Color	Pitch	Pitch	Current	Voltage	Mounting Type	Number of Levels	Mating Orientation	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]	Wire Termination	Features
On Shore Technology Inc. OSTTC050162	-30 ░C	105 ░C	M2.6	Thermoplastic	Steel - Zinc Plated	Tin Plated	Stainless Steel	2.6 Lb-In	0.3 Nm	Blue	0.197 in	5 mm	15 A	300 VDC	Through Hole	1	Horizontal with Board	5	14 AWG	22 AWG	Screw - Leaf Spring Wire Guard	Interlocking (Side)

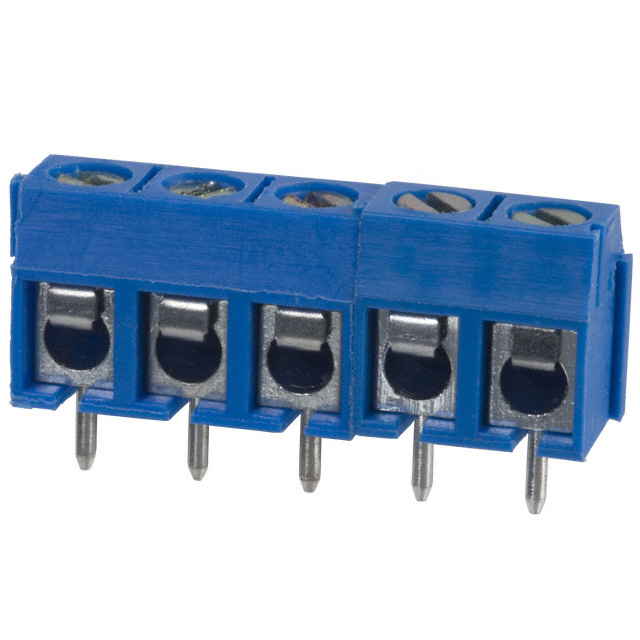

On Shore Technology Inc. OSTTC052162	-30 ░C	105 ░C	M2.6	Thermoplastic	Steel - Zinc Plated	Tin Plated	Stainless Steel	2.6 Lb-In	0.3 Nm	Blue	0.2 in	5.08 mm	15 A	300 VDC	Through Hole	1	Horizontal with Board	5	14 AWG	22 AWG	Screw - Leaf Spring Wire Guard	Interlocking (Side)
