396-026 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 26POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Number of Rows [custom]	Color	Contact Finish	Number of Positions	Contact Material	Number of Positions/Bay/Row	Card Type	Features	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

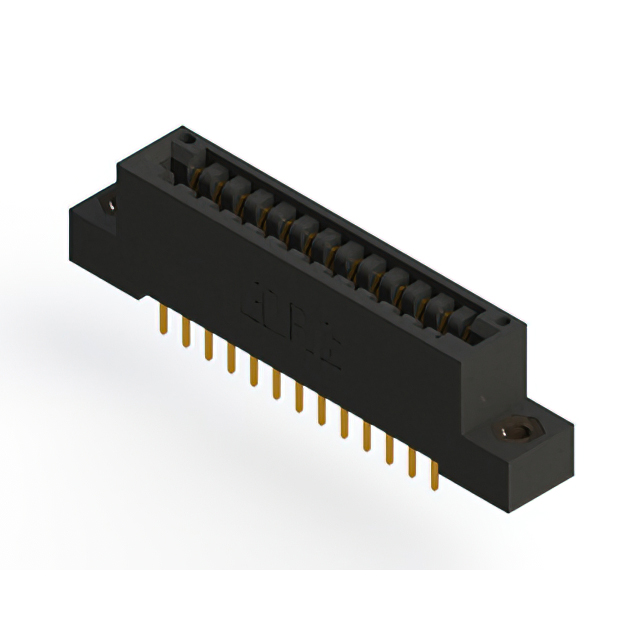

EDAC Inc. 396-026-521-207	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Through Hole	Solder	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge

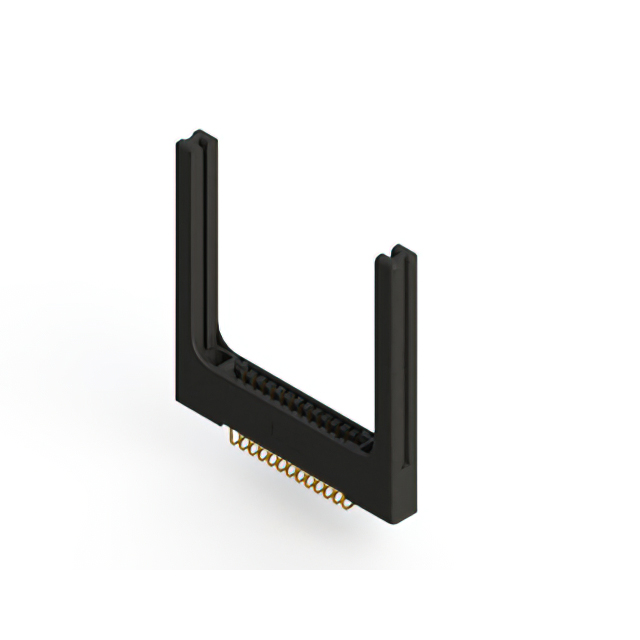

EDAC Inc. 396-026-559-258	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Right Angle Through Hole	Solder Wire Wrap	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge	Card Guides
EDAC Inc. 396-026-540-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Single		0.25 Ám	10 Áin	Through Hole	Wire Wrap		Black	Gold	26	Copper Alloy	26	Non Specified - Single Edge		1	1
EDAC Inc. 396-026-540-604	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Single		0.25 Ám	10 Áin	Through Hole	Wire Wrap		Black	Gold	26	Copper Alloy	26	Non Specified - Single Edge		1	1	0.156 "	3.96 mm

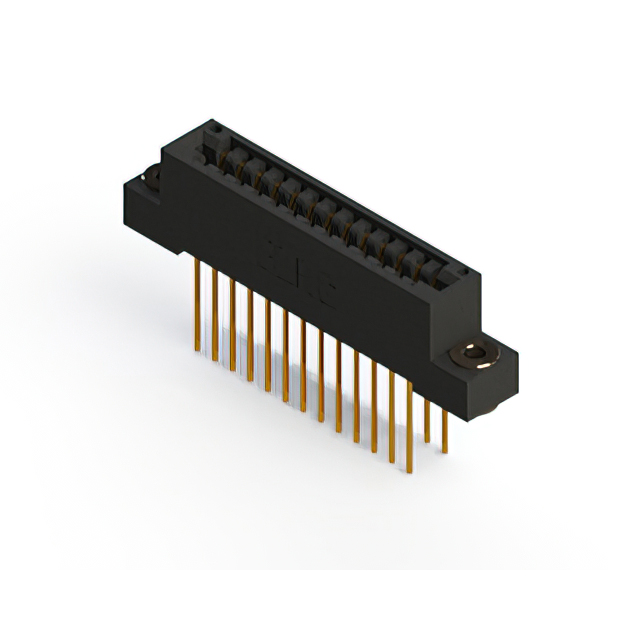

EDAC Inc. 396-026-541-203	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Through Hole	Wire Wrap	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge				0.116 "	2.95 mm

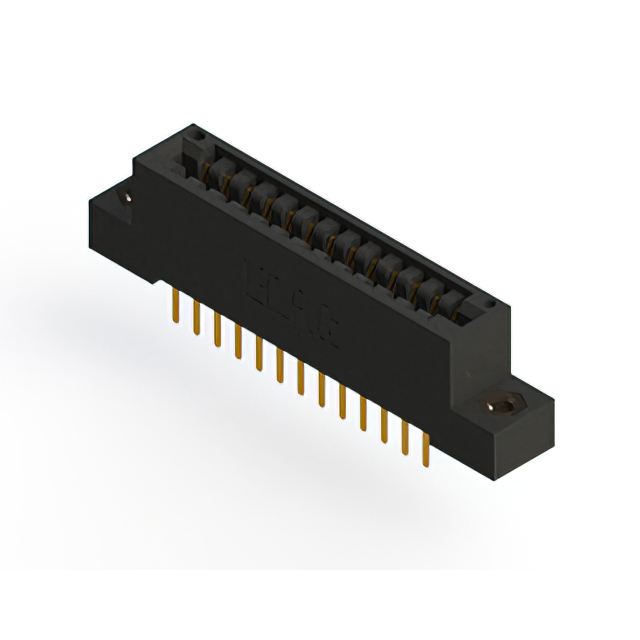

EDAC Inc. 396-026-520-208	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	4-40 Flush Mount Threaded Insert Top Opening	0.25 Ám	10 Áin	Through Hole	Solder	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge
EDAC Inc. 396-026-520-103	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Single	Floating Bobbin Flush Mount	0.25 Ám	10 Áin	Through Hole	Solder		Black	Gold	26	Copper Alloy	26	Non Specified - Single Edge		1	1	0.116 "	2.95 mm

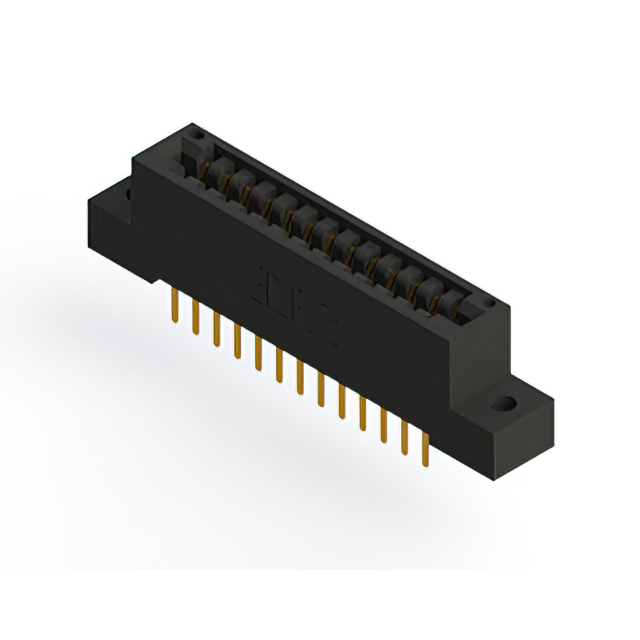

EDAC Inc. 396-026-520-202	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Through Hole	Solder	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge				0.128 "	3.25 mm

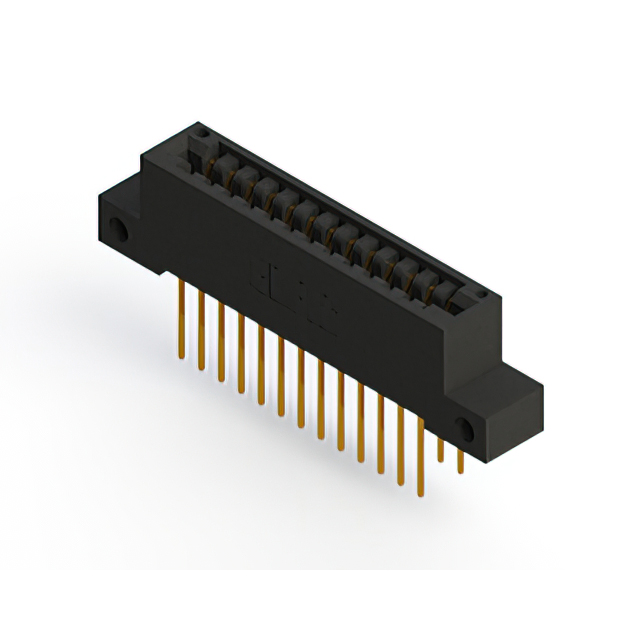

EDAC Inc. 396-026-522-212	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Dual	Flush Mount Side Opening Unthreaded	0.25 Ám	10 Áin	Through Hole	Solder	2	Black	Gold	26	Copper Alloy	13	Non Specified - Dual Edge				0.128 "	3.25 mm
EDAC Inc. 396-026-526-603	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Cantilever	3.18 mm	0.125 in	-40 C	105 ░C	Single	Floating Bobbin Top Mount Opening	0.25 Ám	10 Áin	Through Hole	Solder		Black	Gold	26	Copper Alloy	26	Non Specified - Single Edge		1	1	0.116 "	2.95 mm
