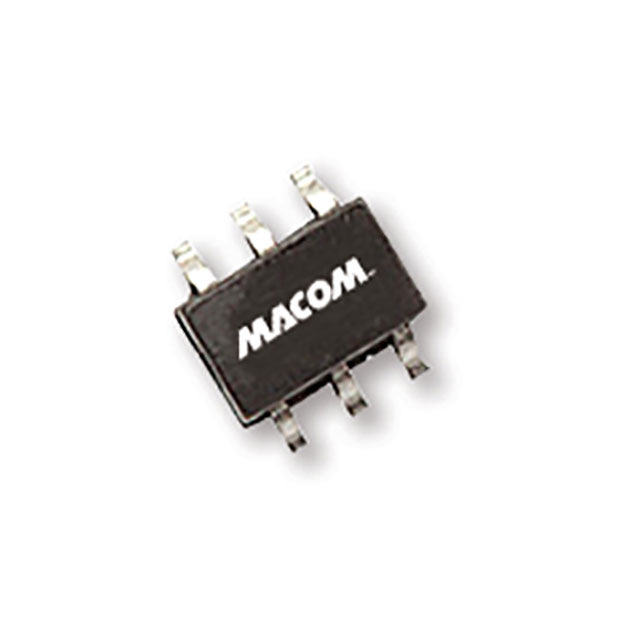

MASW-008853 Series
Manufacturer: MACOM Technology Solutions
Beta
⌘K
IC RF SWITCH SPDT 5GHZ SC70-6
| Part | IIP3 | Voltage - Supply [Max] | Voltage - Supply [Min] | Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Frequency Range [Max] | Frequency Range [Min] | Impedance | Circuit | Mounting Type | RF Type | Insertion Loss | Test Frequency | Supplier Device Package | P1dB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

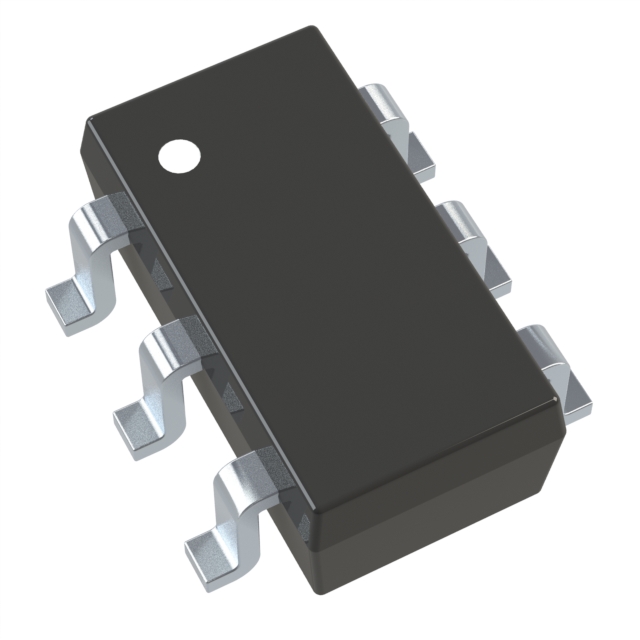

 MACOM Technology Solutions | 56 dBm | 2.7 V | 0 V | 11 dB | 85 °C | -40 C | 6-TSSOP SC-88 SOT-363 | 5 GHz | 0 Hz | 50 Ohms | SPDT | Surface Mount | General Purpose | 1.1 dB | 5 GHz | SC-70-6 (SOT-363) | |
 MACOM Technology Solutions | 56 dBm | 2.7 V | 0 V | 11 dB | 85 °C | -40 C | 6-TSSOP SC-88 SOT-363 | 5 GHz | 0 Hz | 50 Ohms | SPDT | Surface Mount | General Purpose | 1.1 dB | 5 GHz | SC-70-6 (SOT-363) | 38 dBm |
