807-014 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 14POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Number of Positions	Color	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Termination	Card Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Type	Features	Read Out	Number of Rows [custom]	Pitch	Pitch	Number of Positions/Bay/Row	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

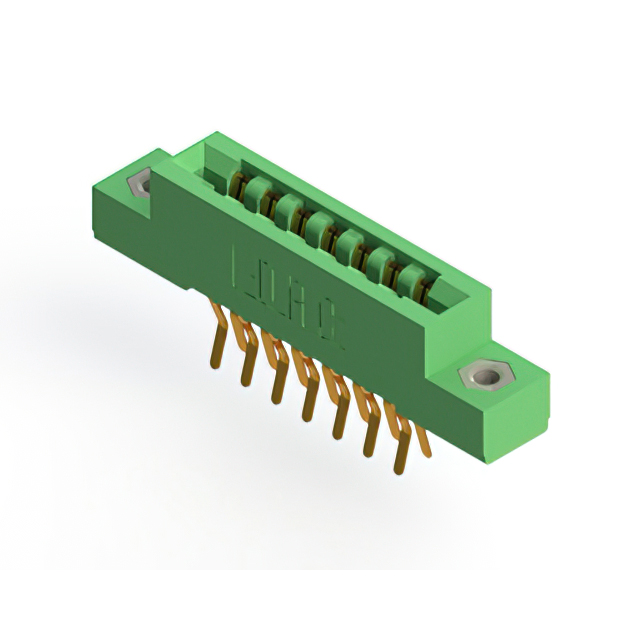

EDAC Inc. 807-014-560-207	Diallyl Phthalate (DAP)	2	14	Green	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows	Card Extender	Dual	2	3.96 mm	0.156 in	7	Board Edge Straddle Mount	0.25 Ám	10 Áin	Gold

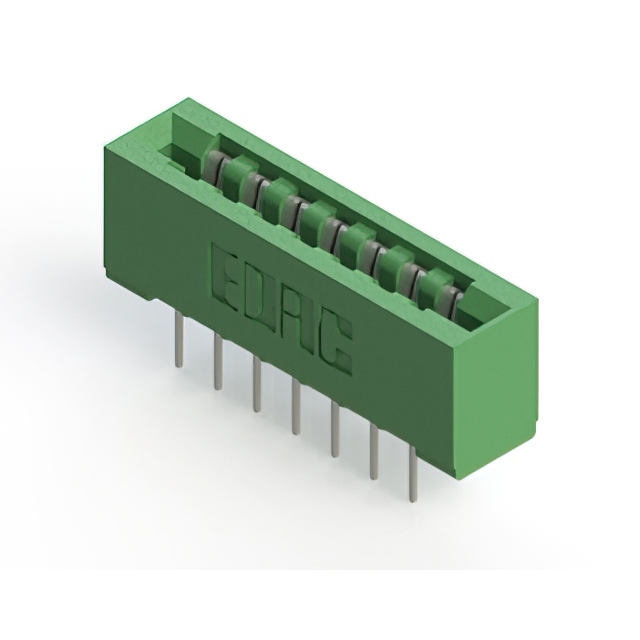

EDAC Inc. 807-014-424-201	Diallyl Phthalate (DAP)	2	14	Green		0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	7	Through Hole			Tin

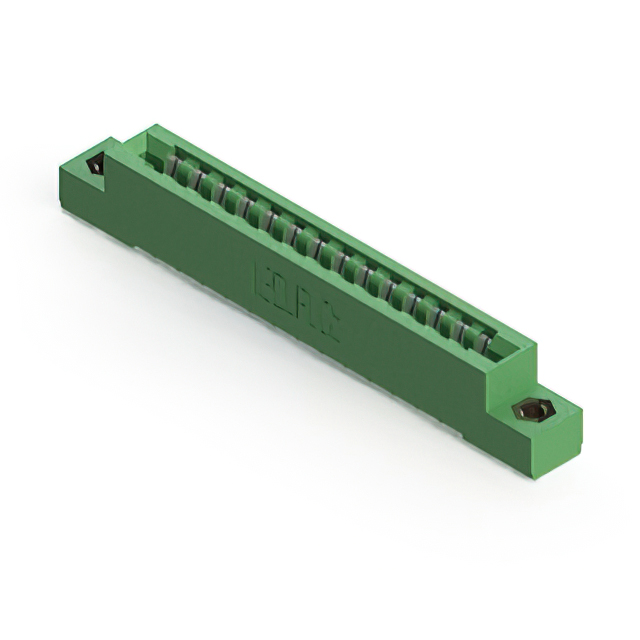

EDAC Inc. 807-014-427-107	Diallyl Phthalate (DAP)		14	Green	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Single		3.96 mm	0.156 in	14	Through Hole			Tin	1	1
EDAC Inc. 807-014-425-102	Diallyl Phthalate (DAP)		14	Green	Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Single Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Single		3.96 mm	0.156 in	14	Through Hole			Tin	1	1	3.25 mm	0.128 "

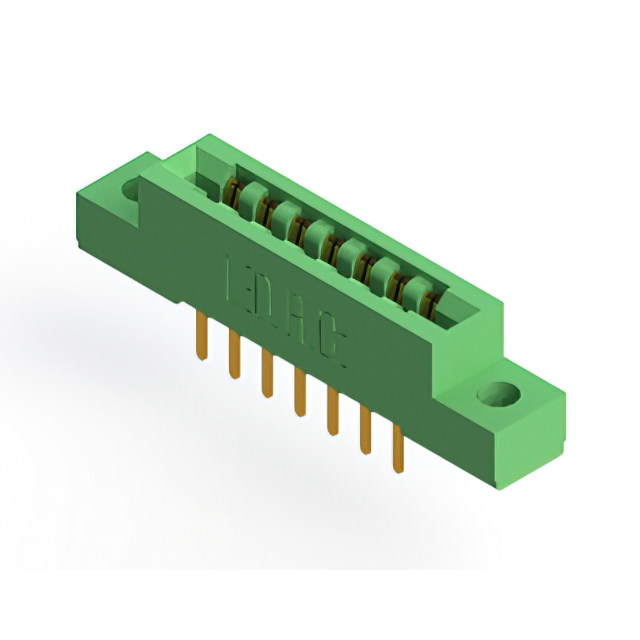

EDAC Inc. 807-014-520-202	Diallyl Phthalate (DAP)	2	14	Green	Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	7	Through Hole	0.25 Ám	10 Áin	Gold			3.25 mm	0.128 "
EDAC Inc. 807-014-560-208	Diallyl Phthalate (DAP)	2	14	Green	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows	Card Extender	Dual	2	3.96 mm	0.156 in	7	Board Edge Straddle Mount	0.25 Ám	10 Áin	Gold
EDAC Inc. 807-014-421-108	Diallyl Phthalate (DAP)		28	Green	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	14	Through Hole			Tin	1

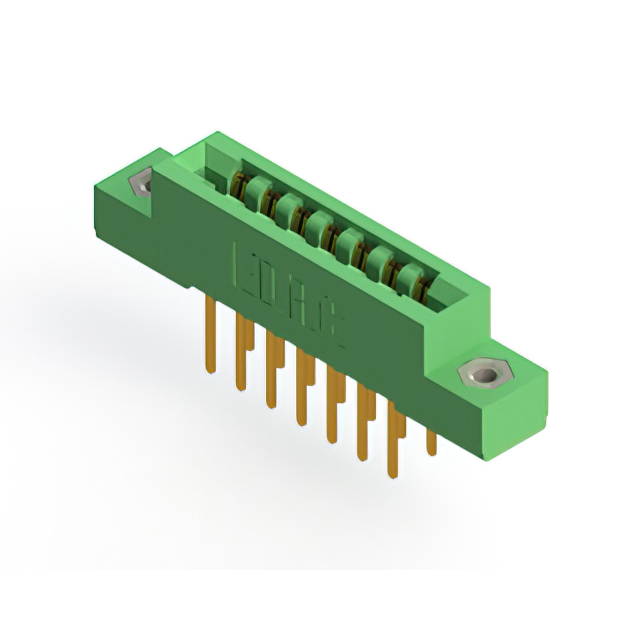

EDAC Inc. 807-014-522-208	Diallyl Phthalate (DAP)	2	14	Green	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	7	Through Hole	0.25 Ám	10 Áin	Gold

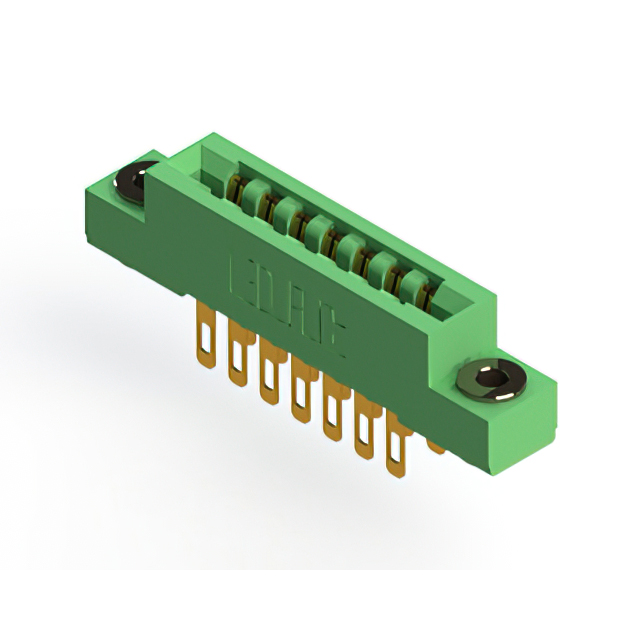

EDAC Inc. 807-014-500-203	Diallyl Phthalate (DAP)	2	14	Green	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	7	Through Hole	0.25 Ám	10 Áin	Gold			2.95 mm	0.116 "

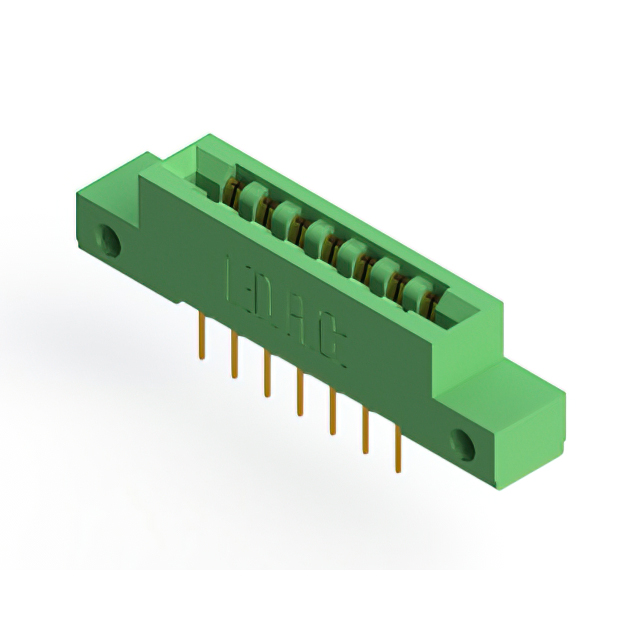

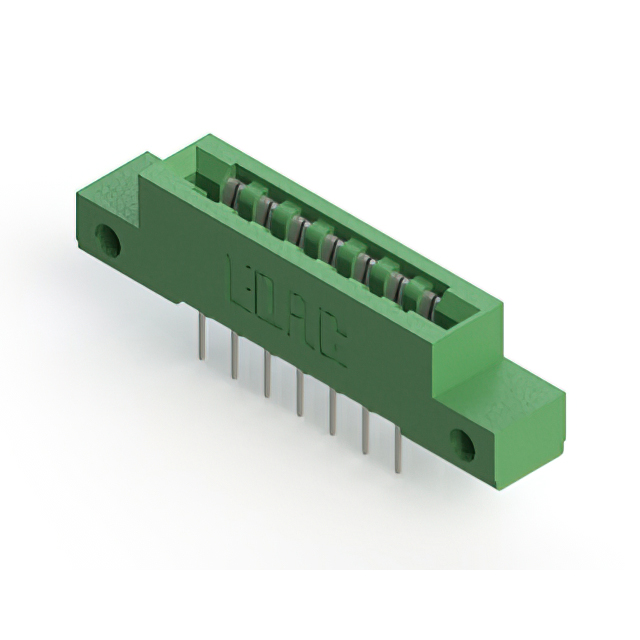

EDAC Inc. 807-014-524-212	Diallyl Phthalate (DAP)	2	14	Green	Side Mount Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Non Specified - Dual Edge	Female	125 °C	-40 C	Copper Alloy	Semi Bellows		Dual	2	3.96 mm	0.156 in	7	Through Hole	0.25 Ám	10 Áin	Gold			3.25 mm	0.128 "
