19C100 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE TRANSMITTER, GAUGE, 0-100PSI

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Output Type	Termination Style	Package / Case	Pressure Type	Voltage - Supply	Features	Operating Pressure	Operating Pressure	Accuracy	Output [Max]	Output	Port Size	Port Size	Port Size	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions 19C100PG2K	300 PSI	2068.43 kPa	Board Mount	125 °C	-40 C	No Port	Analog Voltage	Flex Cable	Cylinder	Vented Gauge	15 VDC	Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV	10 V
Honeywell Sensing and Productivity Solutions 19C100PA1L	300 PSI	2068.43 kPa		125 °C	-40 C	No Port	Analog Voltage	Flex Cable	Cylinder			Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV		Cell w/Body O-Ring

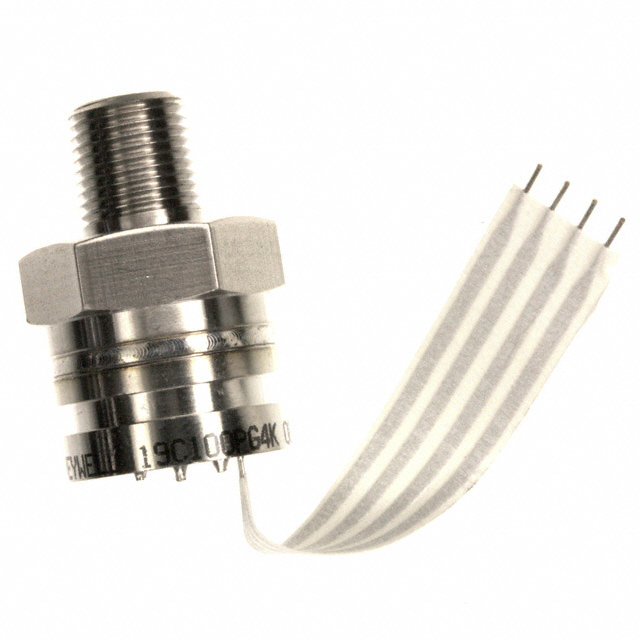

Honeywell Sensing and Productivity Solutions 19C100PG4K	300 PSI	2068.43 kPa	Board Mount	125 °C	-40 C	Threaded	Analog Voltage	Flex Cable	Cylinder Threaded	Vented Gauge	15 VDC	Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV	10 V	Male NPT	0.125 in	3.18 mm
Honeywell Sensing and Productivity Solutions 19C100PA5L	300 PSI	2068.43 kPa		125 °C	-40 C	Threaded	Analog Voltage	Flex Cable	Cylinder Threaded			Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV		Male NPT	0.25 "	0.25 in
Honeywell Sensing and Productivity Solutions 19C100PG3K	300 PSI	2068.43 kPa		125 °C	-40 C	No Port	Analog Voltage	Flex Cable	Cylinder	Vented Gauge	15 VDC	Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV	10 V
Honeywell Sensing and Productivity Solutions 19C100PA7L	300 PSI	2068.43 kPa		125 °C	-40 C	Threaded	Analog Voltage	Flex Cable	Cylinder Threaded			Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV		BSPP Male	0.25 "	0.25 in
Honeywell Sensing and Productivity Solutions 19C100PA8K	300 PSI	2068.43 kPa		125 °C	-40 C	No Port	Analog Voltage	Flex Cable	Cylinder		15 VDC	Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV	10 V
Honeywell Sensing and Productivity Solutions 19C100PG6K	300 PSI	2068.43 kPa		125 °C	-40 C	Threaded	Analog Voltage	Flex Cable	Cylinder Threaded	Vented Gauge	15 VDC	Temperature Compensated	689.48 kPa	100 PSI	0.25 %	100 mV	10 V	Male	0.4375 in 11.11 mm
Honeywell Sensing and Productivity Solutions 19C100PV4K			Board Mount	125 °C	-40 C	Threaded	Analog Voltage	Flex Cable	Cylinder Threaded	Vacuum	15 VDC	Temperature Compensated	-689.48 kPa	-100 PSI	0.25 %	100 mV	10 V	Male NPT	0.125 in	3.18 mm	-2068.43 kPa	-300 PSI
Honeywell Sensing and Productivity Solutions 19C100PV1K				125 °C	-40 C	No Port	Analog Voltage	Flex Cable	Cylinder	Vacuum	15 VDC	Temperature Compensated	-689.48 kPa	-100 PSI	0.25 %	100 mV	10 V	Cell w/Body O-Ring			-2068.43 kPa	-300 PSI
